Integrated IP55 Outdoor Cabinet 20U - 40U Power Distribution Enclosure For Telecom Industry

1 set
MOQ
Negotiation
Price
Integrated IP55 Outdoor Cabinet 20U - 40U Power Distribution Enclosure For Telecom Industry
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: IP55 Outdoor Cabinet
Size: W×D×H 23.63inches X 42.13inchesx78.5inches
Cabinet Lock: Anti-theft Three Point Lock
Protection Level: IP55
Sensor: Water/Smoke/Door Sensors
User Space: 20U - 40U(customized)
Illumination: DC48V LED Lamp
Cooling: Air Conditioner And Fans
Highlight:

Integrated IP55 Outdoor Cabinet

,

IP55 Outdoor Cabinet 20U

,

40U Power Distribution Enclosure
Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: Daxin
Certification: ISO9001,CE,3C,FCC,TLC,IP55
Model Number: ODC-200808C2T-3X
Payment & Shipping Terms
Packaging Details: Woodcase
Delivery Time: 20-40 days
Payment Terms: T/TD/A,Western Union,Paypal,etc
Supply Ability: 3000pcs/month
Product Description

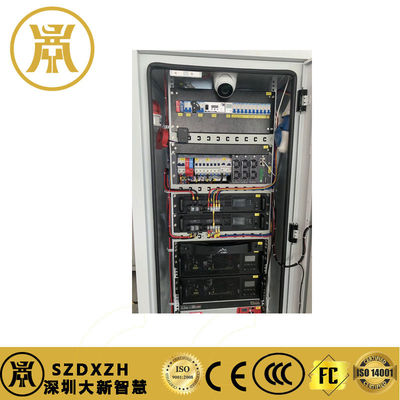

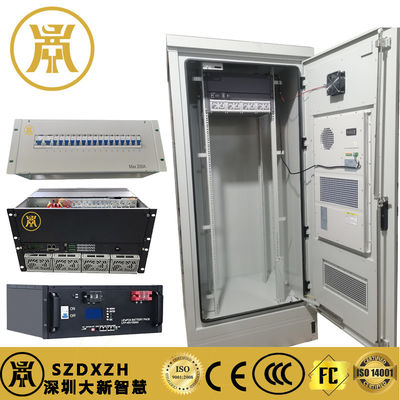

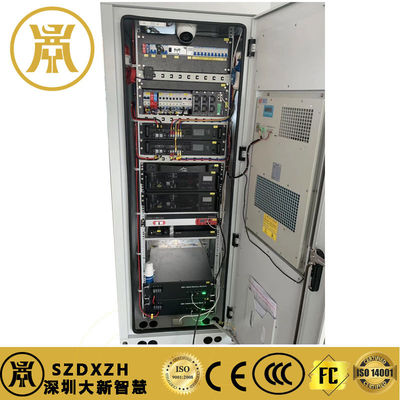

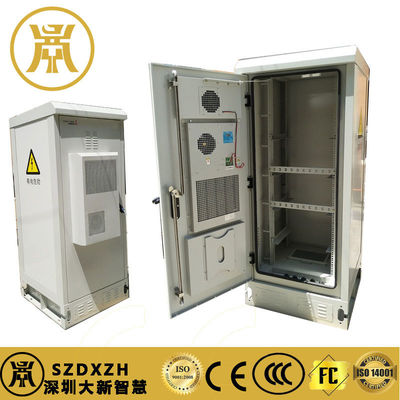

IP55 Outdoor Cabinet For Telecom Industry Integrated With Power And Cooling System



Product introduction:



Double panelled, robust and sturdy aluminium/steel extruded framework; DX outdoor enclosures provide maximum protection against enviromental factors, vandalism, EMC and extreme weather conditions.



Outdoor cabinets are for use whenever maximum protection is a must. The anti-vandalism qualities provides protection against electromagnetic radiation and conditions of high heat.



Best for :



Telecommunication and IT, traffic, industry, military and energy.



Our enclosures are a solutions based project offering: enhanced, robust and solid profile technology, high performance thermal control, a natural ventilation system, anti-vandalism design, dimensions tailored to your needs and are customer-specific for installation and expansion.





Technical details:





Environmental 　
IP (Ingress Protection) Rating IP55,NEMA 4,NEMA 4X
Working Temperature -40～55℃
　 　
Physical 　
Color GREY RAL7035
Material Galvanized steel(Aluminum/stainless steel/Color coated steel optional)
Unit Dimensions (WxDxH) 23.63inches x 42.13inchesx78.5inches
Unit Weight 281lbs.
Weight Capacity (static load) 1000lbs.
　 　
Electronics 　
Cooling 6800BTU Cabinet Air Conditioner (Heat Exchanger/Thermoelectric Cooler(TEC) Optional)
Heating As optional
Fans DC48V
Power PDU(Basic or Smart),AC/DC Power,Built-in Power Optional
Sensors Door Sensor/Water Sensor/Temperature & Humidity sensor/Smoke sensor/Tilt & Shock sensor
Monitoring EMS,KVM Switches,Smart PDU





Customized service is available, contact us for taylored solutions.
