42U Outdoor Telecommunication Cabinet Anti Theft Rack Mounted Cabinet Customized With PDU

Customized Anti Theft 42U Outdoor Cabinet With PDU And Air Conditioner DAXIN

Outdoor battery storage cabinets come in a variety of sizes and capacities to suit different applications and energy needs. Here are some typical sizes and capacities:

Sizes:

Small Cabinets:

Dimensions: Approximately 2-4 feet in height and width, and 1-2 feet in depth.

Suitable for residential applications or small solar setups.

Medium Cabinets:

Dimensions: Approximately 5-6 feet in height, 3-4 feet in width, and 2-3 feet in depth.

Used for larger residential systems or small commercial applications.

Large Cabinets:

Dimensions: Typically 6-10 feet in height and width, and 3-4 feet in depth.

Ideal for commercial installations, large solar farms, or utility-scale applications.

Capacities:

Residential Systems:

Capacities range from 5 kWh to 20 kWh.

Suitable for storing energy generated from residential solar panel systems.

Small to Medium Commercial Systems:

Capacities typically range from 20 kWh to 100 kWh.

Can support businesses that need backup power and load shifting capabilities.

Large Commercial and Utility Systems:

Capacities can range from 100 kWh to several megawatt-hours (MWh).

Used for grid stabilization, renewable integration, and large-scale energy storage solutions.

Considerations:

Battery Type: The type of battery (lithium-ion, lead-acid, etc.) also affects the overall size and energy density of the storage system.

Configuration: Some cabinets may have modular designs, allowing for scalability based on the energy needs of the user.

Location and Environment: The design and size may also be influenced by environmental conditions and specific installation requirements.

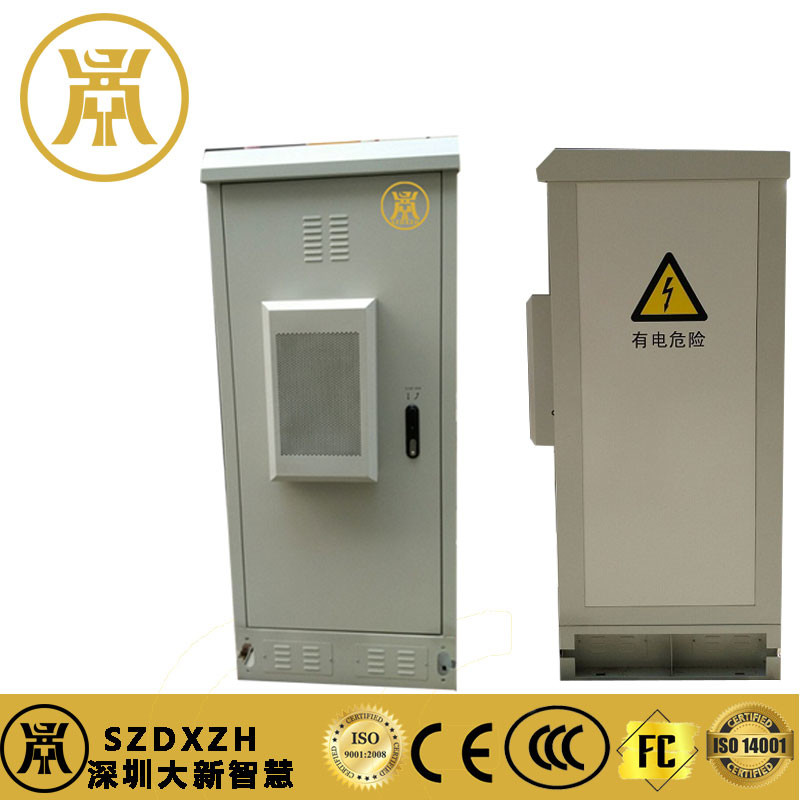

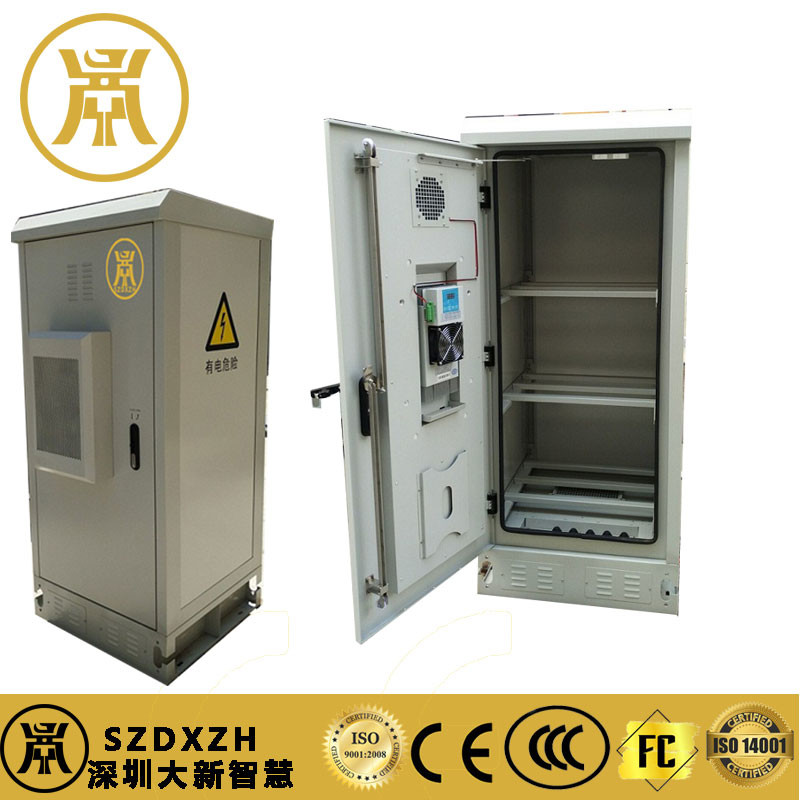

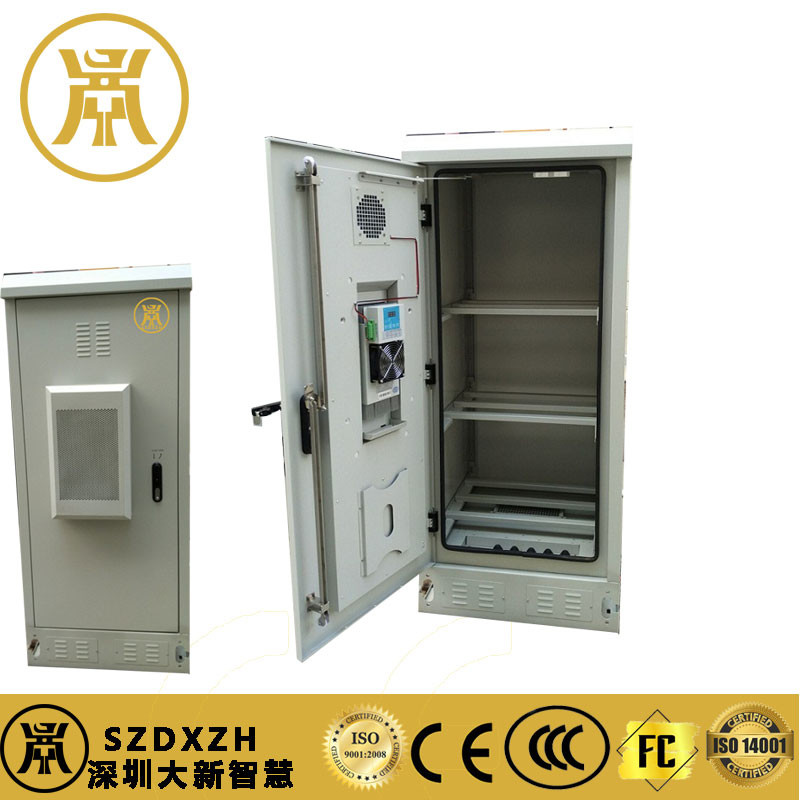

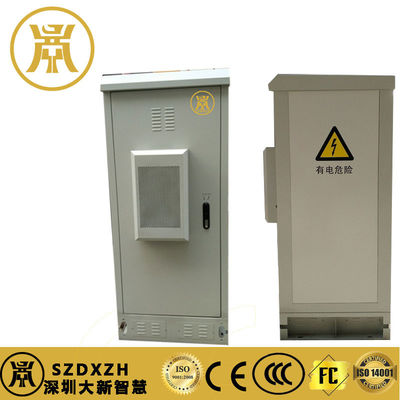

Customized Anti Theft 42U Outdoor Cabinet With PDU And Air Conditioner DAXIN

Cabinet Parameter



No.	Description	Specification
Specification of cabinet
1	Model	DAXIN90902195-42U
2	Cabinet Dimension	W×D×H 900×900×2195mm
3	Available User Space	42U standard 19” rack
4	Door	One front door
5	Lock	Outdoor special anti-theft three point locking
6	Material	Sandwich panel with heat insulation
7	Cabinet Installation method	Floor mount
8	Cable Entry	Located on the bottom
9	Lifting	4 ears on the cabinet base
10	Earthing	Grounding copper bar
11	Working Temperature	-40°C～+75°C
12	Protection Level	IP55
13	Relative Humidity	5% ~ 100%
14	Atmospheric Pressure	62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
15	Solar Radiation Intensity	1120 ×(1±5%)W/m2
Other accessories
1	Cooling	1. Air conditioner, Cooling capacity: 1500W, Power supply: AC220V, 50Hz 2. Fan
2	Power Distribution Unit	3U height, with cutsomized breakers
3	LED light	AC220V 50Hz, with LED lamp switch
Packing
Wooden case		W×D×H 970×1190×2370mm
