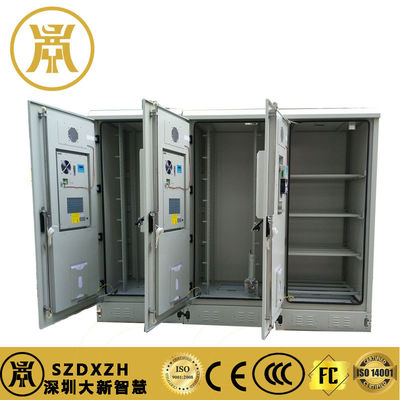

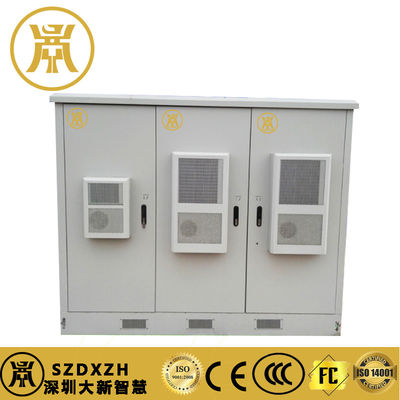

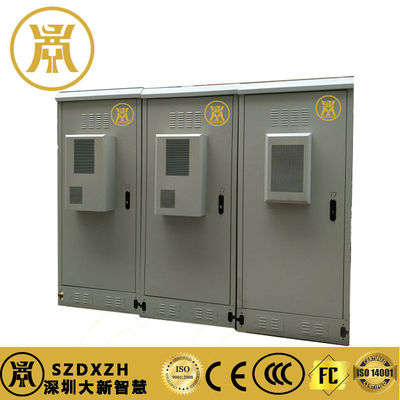

Integrated Outdoor Power Supply Enclosure Three Compartment Outdoor Battery Storage Cabinet

Integrated Outdoor Cabinet With Power System And Battery Storage Three Compartment Cabinet

Designing an integrated telecom cabinet involves several critical steps to ensure both functionality and compliance with industry standards. Here are key considerations and steps to guide you through the process:

1. Define Requirements

• Purpose: Determine the main purpose of the cabinet (e.g., housing telecom equipment, power supplies, networking gear).
• Capacity: Assess the required space for current and future equipment, including rack units (U) needed.
• Environmental Conditions: Understand the environmental conditions where the cabinet will be placed (indoor/outdoor, temperature, humidity levels).

2. Choose Cabinet Type

• Standard Racks: Decide between using standard 19-inch racks or custom sizes based on equipment.
• Enclosures: Select between open frame, enclosed, or wall-mounted cabinets depending on security and access needs.

3. Structural Design

• Material Selection: Choose robust materials such as steel or aluminum for durability. Consider materials with anti-corrosive finishes for outdoor use.
•
• Size and Dimensions: Design the cabinet’s dimensions based on space constraints and equipment size.

4. Cooling and Ventilation

• Cooling System: Include vents, fans, or air conditioning units based on heat output from the equipment.
• Heat Management: Ensure effective airflow and heat dissipation mechanisms to maintain optimal operating temperatures.

5. Power Management

• Power Distribution: Integrate power distribution units (PDUs) for efficient power management.
• Backup Systems: Consider Uninterruptible Power Supplies (UPS) for critical systems.

6. Cabling

• Cable Management: Design pathways and management solutions for power and data cables to prevent overcrowding.
• Labeling: Include proper labeling for easy identification and maintenance.

7. Security Features

• Access Control: Implement locks or biometric access systems for physical security.
• Fire Safety: Consider fire suppression systems and compliance with local safety regulations.

8. Compliance and Standards

• Industry Standards: Ensure the design adheres to telecommunications standards (e.g., EIA/TIA).
• Certifications: Check for any required certifications for electrical and safety compliance.

9. Prototype and Testing

• Create a Prototype: Build a prototype to assess the design and make necessary adjustments.
• Testing: Conduct thorough testing for functionality, cooling efficiency, and power management.

10. Documentation

• Drawings and Schematics: Produce detailed drawings and wiring diagrams for reference.
• User Manual: Develop a user manual outlining installation, operation, and maintenance procedures.

11. Implementation

• Installation: Plan for the installation process, considering team logistics and equipment handling.
• Monitoring: Implement monitoring systems for temperature, humidity, and power to manage the cabinet’s environment effectively.

Each step should include thorough research and consultation with industry experts to ensure that the design is optimal and future-proof.
