Embedded Telecommunications Power Supply 48V 60A AC To DC Power Supply

1 set
MOQ
Negotiation
Price
Embedded Telecommunications Power Supply 48V 60A AC To DC Power Supply
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Telecommunications Power Supply
Temperature Range: -40°C To 55°C
Input Voltage: 100-240V
Mount Way: 19-inch Mount
Surface: Outdoor Powder Coating
Embedded Power Supply: Brand: Daxin
Humidity Range: 10% To 95%
Cabinet Layout: One Compartment
Installation Method: Floor Installed
Mtp Connector Rl: ≥60dB
Internal Dimension: W×D×H 482.3×380×44mm
Highlight:

Embedded Telecommunications Power Supply

,

Telecommunications Power Supply 48V

,

60A AC To DC Power Supply
Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: Daxin
Certification: ISO9001,CE,3C,FCC,TLC,IP55
Model Number: DX-T-60A
Payment & Shipping Terms
Packaging Details: Woodcase
Delivery Time: 20-40 days
Payment Terms: T/TD/A,Western Union,Paypal,etc
Supply Ability: 3000pcs/month
Product Description

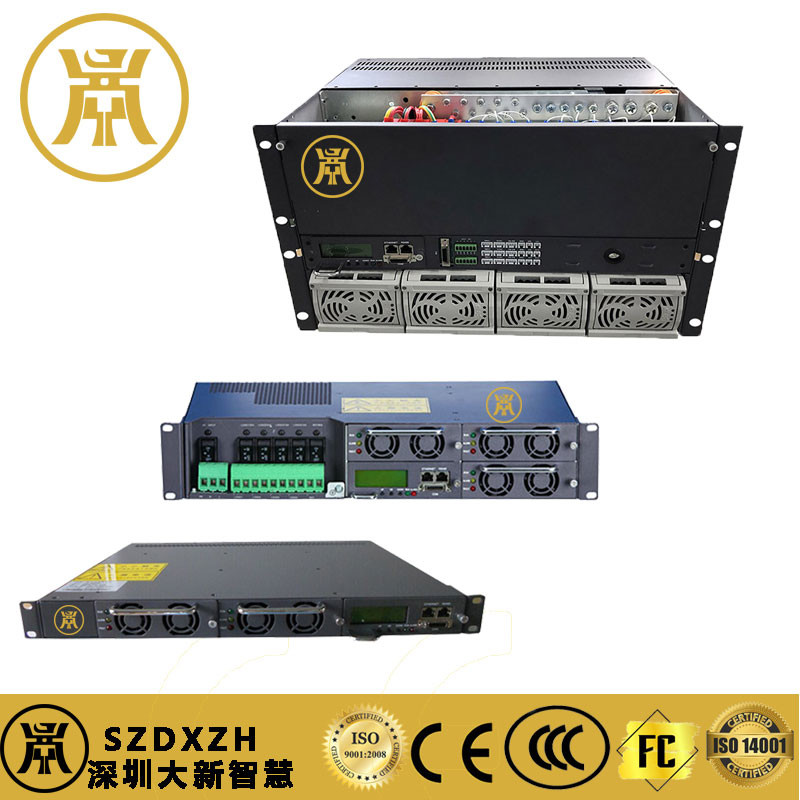

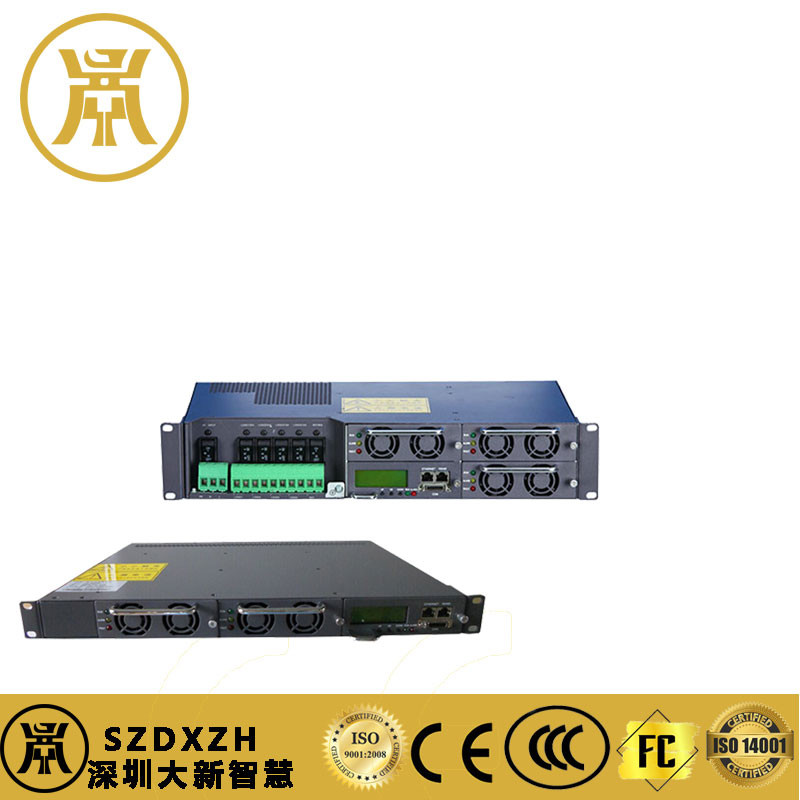

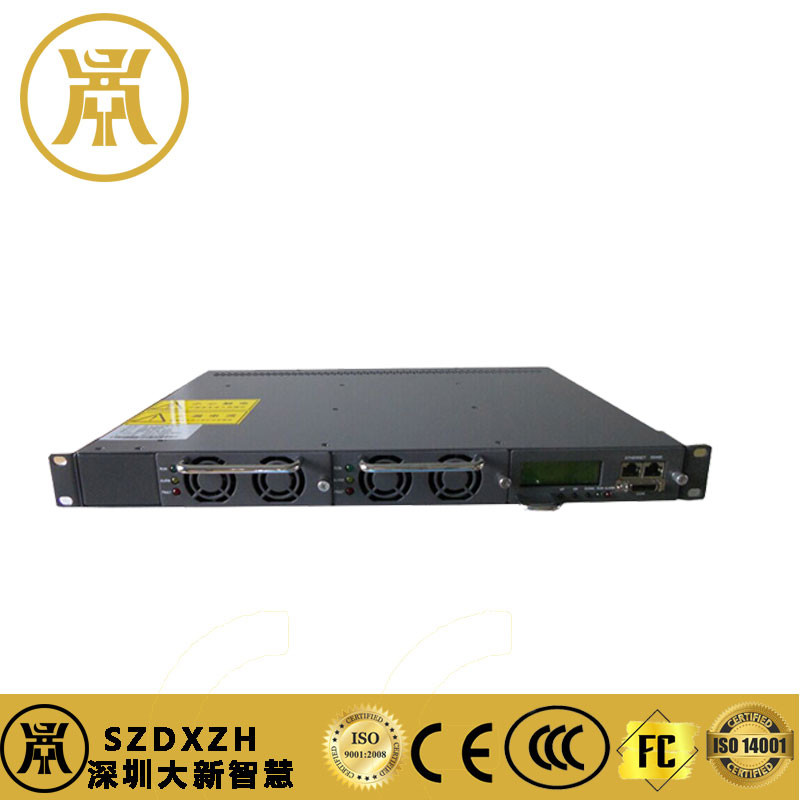

48V 60A Embedded Telecommunication Power Supply AC To DC Rack Mount



VCS AC/DC Power Syste

Embedded Telecommunications Power Supply 48V 60A AC To DC Power Supply 0 Embedded Telecommunications Power Supply 48V 60A AC To DC Power Supply 1 Embedded Telecommunications Power Supply 48V 60A AC To DC Power Supply 2 Embedded Telecommunications Power Supply 48V 60A AC To DC Power Supply 3
VCS1U-4860A VCS2U-4890 VCS3U-4890 VCS3U-48150
Introduction
It is designed for insetting the 19”, 21” rack. The system consists of VSM-B/C control module, VRM48 rectifier module, and etc. And there is AC-DC distribution unit. It’s capacity can reach 48V/10A~150A combining racks with rectifiers.
Characteristics

* It can be put in a rack with other telecom equipments
* High efficiency, high power factor
* Wide input voltage range, high adaptability to electric network
* Good electromagnetic compatibility
* With lightning arrester in input and output, have good lightning protection
*With RS485/RJ45 interface, easy to connect with any advanced intelligent centralized monitoring system
* Have the abandon battery management functions about battery protection, Low voltage battery disconnection (LVBD), temperature compensation
* Parallel redundant system, with high reliability
* With Chinese and English interface, it’s easy to operate.



Technical Data

                        Embedded Telecommunications Power Supply 48V 60A AC To DC Power Supply 4

  VCS1U-4860 VCS2U-4890 VCS3U-4890 VCS3U-48150
Input
Rated voltage Single phase 220Vac



Operation voltage range



 90~300Vac
Current(Max) 23A 34.5A 34.5A 57.5A
Frequency 50/60Hz±10%
Power factor ≥0.99
Output
Voltage 48V( 40~58Vdc adjustable)
Current 10-60A 10-90A 10-90A 10-150A
Power(Max) 3480W 5220W 5220W 8700W
Current sharing at paralleling ≤±3%
Voltage stability precision ≤±0.6%
Efficiency ≥91%
Other data
Dimension(W*D*H) (mm) 482×253×44 482×253×88 482×253×132 482×253×132
Weight 8kg 11kg 12kg 15kg
Battery Input 32A*1 80A*1 63A*2 63A*2
Load Output 32A*1 30A*2, 10A*2 63A*3 20A*3 16A*2 10A*2 63A*2 32A*2 16A*1


VRM Rectifier



Technical Data
  VRM4810 VRM4815 VRM4820 VRM4830
Input
Rated voltage Single phase 220Vac
Operation voltage range



 90~300Vac
Current ≤3.8A ≤5.7A ≤7.6A ≤11.5A
Frequency 50/60Hz±10%
Power factor ≥0.99
Output
Voltage 48V( 40~58Vdc adjustable)
Current(@58V) 10A 15A 20A 30A
Current sharing at paralleling ≤±3%
Voltage stability precision ≤±0.6%



SMPS1000H-I
Protection



 Over voltage, over current, output short-circuit and over temperature
Other data
Efficiency ≥91%
Cooling mode Fan cooling
Operating temperature -10~+55℃
Degree of protection class IP20
Ripple voltage ≤200mVpp
Phosphometric noise ≤2mVrms
Load effect ≤±0.5%
Restoring time of load effect ≤200μs
Source effect ≤±0.1%
Dimension (mm) 116.5(W) ×208(D) ×41.6(H)
Weight 1.5kg
EMC
Emission Ac input in accordance with EN50081-1 and EN50081-2; DC output in accordance with EN50081-2
Immunity In accordance with EN50081-1, EN50081-2
Safety In accordance with IEC950, EN60950, EN41003, UL1950, AS/NZ3260

Because we have many combinations of 48V DC power supply, you can ask our business staff what kind of configuration you need, we have 1U power supply/2U Power Supply/3U power supply/5U power supply/6U power supply/, and communication cabinet, there must be a device to meet your on-site installation and use of equipment needs.
