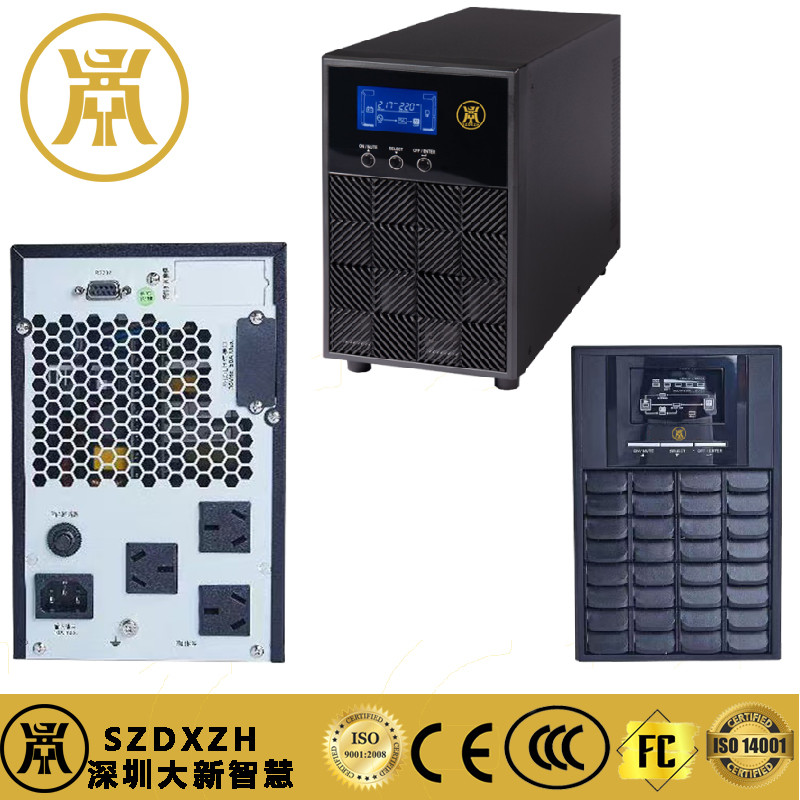

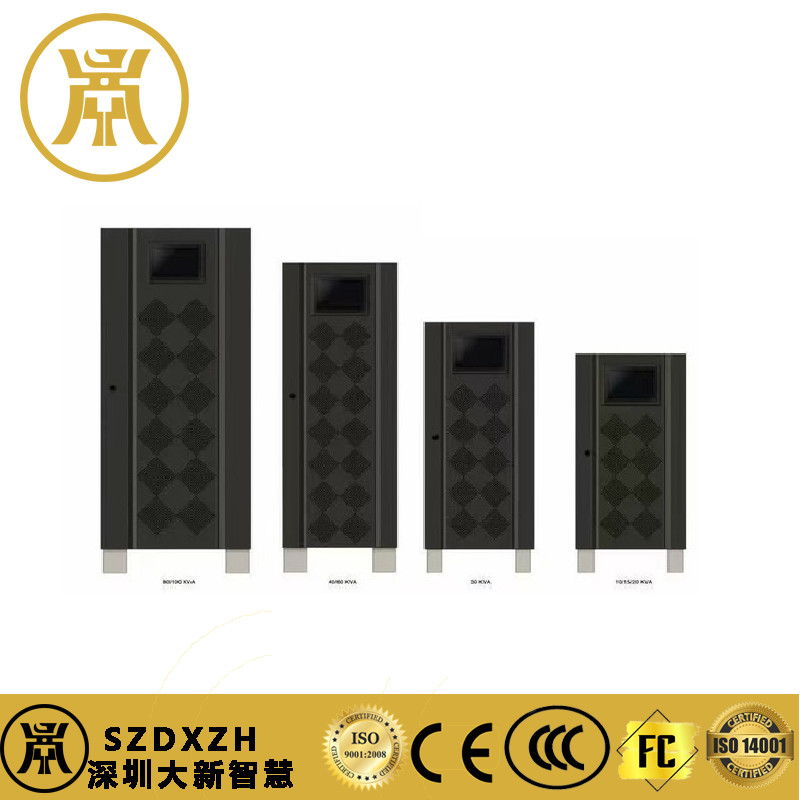

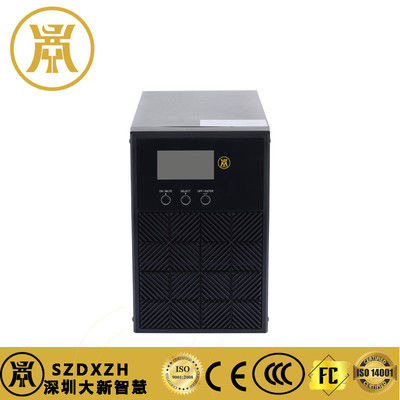

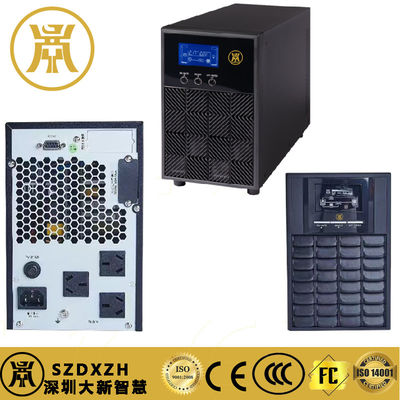

Line Frequency Industrial UPS Power Supply Single Phase Mission Critical Power Supply

1 set
MOQ
Negotiation
Price
Line Frequency Industrial UPS Power Supply Single Phase Mission Critical Power Supply
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Industrial UPS Power Supply
Display: LCD
Phase: Single Phase Input/ Output
Waveform: Pure Sine Wave
Frequency: 50Hz±5%
Transfer Time: 0ms
Battery Mode: External Battery Pack Supported
Highlight:

Line Frequency Industrial UPS Power Supply

,

Single Phase Mission Critical Power Supply

,

Line Frequency Mission Critical Power Supply
Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: Daxin
Certification: ISO9001,CE,3C,FCC,TLC,IP55
Model Number: ZH 1-15KL
Payment & Shipping Terms
Packaging Details: Woodcase
Delivery Time: 20-40 days
Payment Terms: T/TD/A,Western Union,Paypal,etc
Supply Ability: 3000pcs/month
Product Description

Line-Frequency UPS: Mission-Critical Power Protection With 24/7 Burn-In Validated Reliability



Industrial/ line-frequency UPS Introduction



The ZH 1-15KL Series Industrial/ line-frequency UPS ensures robust reliability with full digital microprocessor control for precise power conversion and stability. Its controlled rectifier enhances grid adaptability, while the integrated isolation transformer minimizes neutral-to-ground voltage and harmonic distortion. Dedicated battery terminals prevent installation errors, and 90% industry-certified components ensure durability. Each unit undergoes 24-hour burn-in testing to validate ultra-high reliability, making it ideal for mission-critical applications like data centers and medical facilities. voltage fluctuations, and other power - related issues.



Technical Parameters:



Product Model 1KVA 2KVA 3KVA 6KVA 8KVA 10KVA 15KVA
Standard Type Extended Type Standard Type Extended Type Standard Type Extended Type Standard Type Extended Type Extended Type Extended Type Extended Type
Rated Capacity 1KVA/800W 2KVA/1.6KW 3KVA/2.4KW 6KVA/4.8KW 8KVA 10KVA 15KVA
6.4KW 8KW 12KW
Input Phase Single - phase
Voltage 160 ~ 280Vac
Frequency 50Hz±5%
Output Voltage 220Vac±1%
Frequency 50Hz±0.1% (Battery operation)
Waveform Pure sine wave
Distortion < 3% (Under linear full - load condition)
Efficiency AC to AC > 85%
Transfer Time 0ms
DC Start Adaptable
ECO Energy - saving Mode Adaptable
Redundant Parallel Adaptable
Battery Type 6 - cell 6 - cell 8 - cell 16 - cell or 8 - cell 16 - cell
Nominal Voltage 72Vd 72Vdc 96Vdc 192Vdc/96Vdc 192Vdc
Charging Current 1A (Standard unit), 5A 5A
Protection Function Overload > 120% overload maintains for 1 min, transfers to bypass or shuts down, > 150% overload maintains for 30 seconds, transfers to bypass or shuts down
Short - circuit Circuit automatic protection, bypass switch trips
Noise Suppression EMI/RFI filter
Low Battery Shutdown protection
Output Abnormality Inverter automatic interlock protection
Peak Factor 3:01
With Generator Adaptable
Display Function LED UPS operating status
LCD Color liquid crystal display: 1. Input status; 2. Output status; 3. Bypass status; 4. Load status; 5. Charging status; 6. ECO mode; 7. Inverter status; 8. Rectifier operation; 9. Inverter temperature; 10. Transformer status; 11. Operating time (days); 12. Device number; 13. Calendar, clock; 14. Model number and specification; 15. Product version number; 16. History accumulation record; 17. History fault record; 18. Language setting; 19. ECO setting; 20. Clock; 21. Daily setup; 22. Battery discharge test, etc.
Alarm Device Alarm Mains failure, rectifier failure, low battery voltage, over - charging voltage, overload, etc.
Mute Automatic
Noise Distance 1m <50DB





Applications:

  • Servers

  • Industrial Machinery

  • Financial Infrastructure

  • Network Systems

  • PC Workstations

  • Security Devices

  • Educational Facilities

  • E-Commerce Platforms

  • Transportation Networks

  • Laboratory Equipment

  • Emergency Backup Systems

  • Medical Devices​



Protection Features:

  • Voltage Protection

  • Blackout Protection

  • Equipment Protection

  • Overload Protection

  • Overcharge Protection

  • Short-Circuit Protection

  • Surge Protection

  • EMI/RFI Noise Suppression

​
