30KVA Industrial UPS Power Supply Line frequency 3 Phase Industrial UPS With Isolation Transformer

1 set
MOQ
Negotiation
Price
30KVA Industrial UPS Power Supply Line frequency 3 Phase Industrial UPS With Isolation Transformer
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Industrial UPS Power Supply
Operating Temperature: 0 ~ 40°C
Interface: Graphic Interface: RS - 232 Communication, USB, EPO Remote Shutdown
SNMP Adapter: Optional
Transfer Time: 0ms
Compliance Standard: IEC 62040
Highlight:

30KVA Industrial UPS Power Supply

,

Line frequency 3 Phase Industrial UPS

,

3 Phase Industrial UPS 30KVA
Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: Daxin
Certification: ISO9001,CE,3C,FCC,TLC,IP55
Model Number: 31-6/10/15/20/30KVA
Payment & Shipping Terms
Packaging Details: Woodcase
Delivery Time: 20-40 days
Payment Terms: T/TD/A,Western Union,Paypal,etc
Supply Ability: 3000pcs/month
Product Description

3-phase Industrial Line-frequency UPS: Ultra-Stable Power Safeguard with Isolation Transformer



Product Description:



Our Industrial UPS Power Supply can Achieve 89% efficiency in Commercial Power Mode with our rugged UPS battery backup, engineered for industrial resilience. Featuring robust construction to withstand harsh environments, it ensures seamless operations during outages. Backed by 24/7 remote monitoring, on-site technical support, and proactive maintenance services, we guarantee optimized performance. From professional installation to real-time diagnostics, our end-to-end solutions minimize downtime.

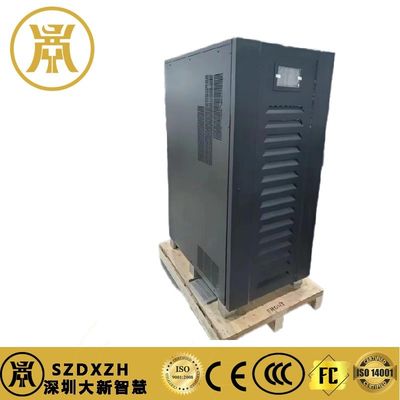

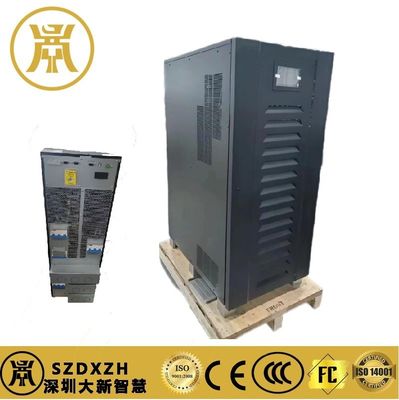

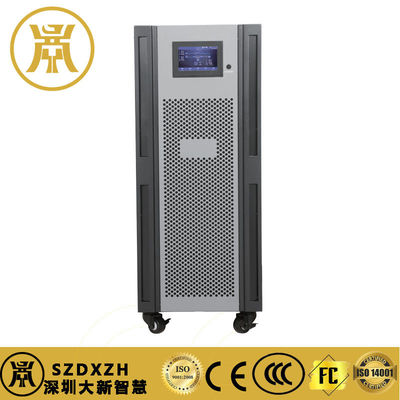

30KVA Industrial UPS Power Supply Line frequency 3 Phase Industrial UPS With Isolation Transformer 0

Features:



Blackout Protection

Equipment Protection

Short-Circuit Protection

Surge Protection

EMI/RFI Noise Suppression

Full digital microprocessor control

SCR rectifier + IGBT inverter technology



Technical Parameters:



Product Model 6KVA Extended Type 10KVA Extended Type 15KVA Extended Type 20KVA Extended Type 30KVA Extended Type
Rated Capacity 6KVA/4.8KW 10KVA/8KW 15KVA/12KW 20KVA/16KW 30KVA/24KW
Input Phase Three - phase
Voltage 380Vac + 30% - 22%
Frequency 50Hz ± 5%
Output Voltage 220Vac ± 1%
Frequency 50Hz ± 0.5% (Battery operation)
Waveform Pure sine wave
Distortion < 3% (Under linear full - load condition)
Efficiency AC to AC > 85%
Transfer Time 0 ms
DC Start Adaptable
ECO Energy - saving Mode Adaptable
Redundant Parallel Adaptable
Battery Type Lead - acid maintenance - free battery
Number of Cells 32
Nominal Voltage 384Vdc
Charging Current 5A - 10A
Protection Function Overload > 120% overload maintains for 10 min, transfers to bypass or shuts down; > 150% overload maintains for 30 seconds, transfers to bypass or shuts down
Short - circuit Circuit automatic protection, bypass switch trips
Noise Suppression EMI/RFI filter
Low Battery Shutdown protection
Output Abnormality Inverter automatic interlock protection
Peak Factor 3:01
With Generator Adaptable
Display Function LED UPS operating status, fault status, load status
LCD Color liquid crystal display: 1. Input status; 2. Output status; 3. Bypass status; 4. Load status; 5. Charging status; 6. ECO mode; 7. Inverter status; 8. Rectifier operation; 9. Inverter temperature; 10. Transformer status; 11. Operating time (days); 12. Device number; 13. Calendar, clock; 14. Model number and specification; 15. Product version number; 16. History accumulation record; 17. History fault record; 18. Language setting; 19. ECO setting; 20. Clock; 21. Daily setup; 22. Battery discharge test, etc.
Alarm Device Alarm Mains failure, low battery voltage, over - charging voltage, overload, etc.
Mute Automatic
Noise Distance 1m <50DB





Applications:



Home Servers

Industrial Machinery

Financial Infrastructure

Network Systems

PC Workstations

Security Devices

Educational Facilities

From data centers to medical facilities, the 3-phase line frequency UPS robust design and fail-safe protections ensure continuous power integrity, even in mission-critical environments.

Tag:

Industrial Uninterrupted Power Supply

Mission Critical Power Supply

Single Phase Online UPS
