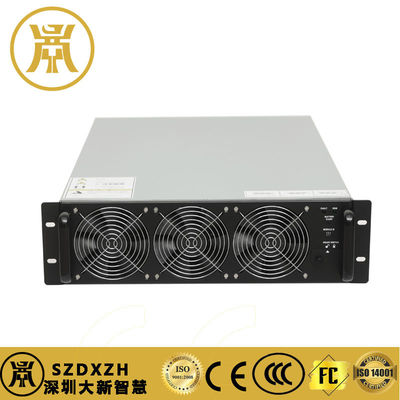

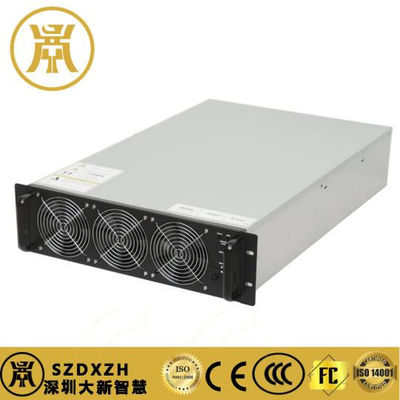

Expandable Modular Online UPS With 5.7" LCD 30k Capacity, Back Up Power Ideal For Data Centers
Product Introduction

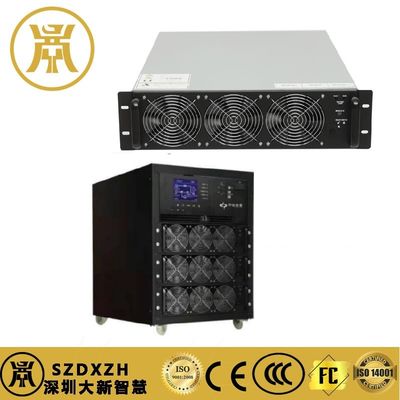

This modular UPS is a three-phase, four-phase online, double-conversion and inverter type uninterruptible power supply. It is designed with STS modules, power modules, and battery modules for easy maintenance and replacement. The power module features modular and hot-swap design, providing a cost-effective power solution that can meet various user requirements. Users can adjust the number of power modules according to their initial needs and easily add extra power modules as the power demand increases without interrupting the system operation.
Product Parameters
|
Model
|
RM33-60KVA
|
RM33-90KVA
|
RM33-120KVA
|
RM33-180KVA
|
RM33-200KVA
|
RM33-210KVA
|
RM33-300KVA
|
RM33-400KVA
|
RM33-500KVA
|
RM33-600KVA
|
|
Phase
|
Three times in, three times out
|
|
Cabinet capacity
|
60KW
|
90KW
|
120KW OR 80K
|
180KW OR 120K
|
200KW
|
210KW
|
300KW
|
400KW/420KW
|
500KW
|
600KW
|
|
Battery mode
|
External battery pack
|
|
Single module capacity
|
20K
|
30K
|
20K/30K
|
20K/30K
|
20K
|
30K
|
30K
|
50KVA/60KVA(50KW/60KW)
|
|
Number of installable modules
|
3
|
3
|
4
|
6
|
10
|
7+1
|
10
|
7+1
|
10
|
10
|
|
INPUT
|
|
Rated voltage
|
3*380VAC/400VAC/415VAC(3PH+N)
|
|
Voltage range
|
100%load305~478VAC;<70%
|
|
Rated range
|
50/60Hz(Automatic selection)
|
|
Frequency range
|
40Hz~70Hz
|
|
Input power factor
|
100%load>0.99:50%load；>0.98.
|
|
Current harmonic distortion(THDI)
|
<3%@100%load
|
|
OUTPUT
|
|
Rated voltage
|
3*380VAC/400VAC/415VAC(3PH+N)
|
|
Voltage stability (steady state)
|
≤±1%Typical value (balanced load)~≤±2%Typical Value (Unbalanced Load)
|
|
Voltage stability (transient)
|
≤±5%Typical Value
|
|
Rated frequency
|
50/60Hz
|
|
Frequency range (Synchronous correction range)
|
46~54Hz OR 56~64Hz
|
|
Overload capability
|
110% 60分钟；120% 10分钟,150% 60秒,>150% 200毫秒
|
|
Harmonic distortion
|
≤1.5%TDH(线性负载)；≤4%TDH(非线性负载)
|
|
efficiency
|
最高可达94.5%
|
|
Battery/charging
|
|
Rated voltage
|
±216v(12v*36)
|
|
Maximum voltage
|
±240v(12v*40)
|
|
Minimum voltage
|
±192v(12v*32)
|
|
Float charging voltage
|
2.25V/cell
|
|
Maximum charging voltage
|
2.25V/cell
|
|
temperature compensation
|
YES
|
|
Maximum charging current
|
8A for 30kw module/6A for 20kw module
|
6A
|
8A
|
8A
|
18A(Adjustable)
|
|
Physical performance
|
|
Cabinet size Depth*Width*Height)mm
|
1100*514*763
|
1100*600*1475
|
1100*600*2010
|
1065*600*2000
|
1065*1000*2000
|
|
Net weight of the cabinet(KG)
|
182
|
183.5
|
335
|
437.5
|
625
|
549
|
620
|
331
|
419
|
516
|
|
Using environment
|
|
Temperature and humidity
|
Relative humidity 20-90% and 0-40 ℃ (non condensing)
|
|
IP Protection level
|
IP20
|
|
Control management
|
|
Intelligence RS-232/USB
|
SupportWindows2000/2003/XP/Vista/2008,Windows7/8,Linux and MAC
|
|
OptionalSNMP
|
Power management supports SNMP management and network management
|
|
Safety regulations
|
|
safety regulations
|
IEC/EN 60950-1; IEC/EN 62040-1
|
|
Electromagnetic specifications
|
IEC/EN 62040-2 Category C3
|
Product Advantages
Modular design: Applied to power modules, STS modules, and battery modules, it enables easy expansion. As the power demand grows, users can simply add extra power modules without disrupting the system operation, enhancing system flexibility.
High stability and security: With N + 1 or N + R parallel redundant application design, the system's stability and security are significantly increased. It can operate in multiple modes such as standby, online, battery, bypass, ECO, power - off, and maintenance bypass (manual bypass), ensuring continuous power supply under various conditions.
Cost - effective: The modular and hot - swap design of the power module offers a cost - effective power solution, reducing the overall cost of the power system.
Easy maintenance: The design of each module allows for quick repair and replacement, which can effectively lower after - sales maintenance costs.
High - performance display: The 5.7" LCD graphical design (optional 10 - inch touch LCD screen) provides an intuitive and clear display of various information, facilitating user operation and monitoring.
Product Applications
This modular UPS is suitable for a wide range of applications, including but not limited to data centers, communication base stations, industrial control systems, and commercial buildings. It can provide stable power support for servers, networking equipment, industrial machinery, and other electrical devices, ensuring their normal operation during power outages or unstable power supply situations.
Product Features
Multiple operation modes: It can operate in standby, online, battery, bypass, ECO, power - off, and maintenance bypass (manual bypass) modes, adapting to different power supply scenarios.
Adjustable charging current: The charging current of each module can be adjusted, with a maximum charging current of up to 8A/6A, which can better meet the charging requirements of different batteries.
High - quality power output: The output power factor is 1 (KVA = KW), and it has excellent voltage stability and low harmonic distortion. The voltage stability in the steady - state is ≤±1% for balanced loads and ≤±2% for unbalanced loads, and the harmonic distortion is ≤1.5% THD for linear loads and ≤4% THD for non - linear loads, providing high - quality power for electrical equipment.
