0ms Transfer Time 20KVA Online UPS 3U Online UPS System For Telecom Network Installations

20KVA Online UPS System Ensuring Zero Transfer Time Best For Telecom Network Installations

Premium Double-Conversion Online UPS Technology

Our 20KVA rack/tower convertible Online UPS delivers true uninterrupted power protection through pure double-conversion technology, ensuring zero transfer time for mission-critical applications.

Ideal Applications:

✓ Data center power infrastructure
✓ Industrial control systems
✓ Medical equipment protection
✓ Telecom network installations
✓ Financial transaction systems

Advanced Monitoring & Control:

1. Intelligent Interface Features:

//Rotating LCD display (auto-orientation)

//Multi-protocol communication:

• RS232/RS485 interfaces
• SNMP network monitoring
• USB connectivity
• Cross-platform compatibility (Windows/Linux/Mac)

​

2. Operational Advantages

• DSP-controlled power conversion
• ECO mode for energy savings
• Emergency Power Off (EPO) function
• Generator compatibility
• Dual input support

3. Environmental Specifications

• Operating temperature: 0°C to 40°C
• Humidity tolerance: <95% non-condensing
• IP20 protection rating
• Noise level: <62dB @ 1m

System Advantages:

• Pure sine wave output for sensitive electronics
• Military-grade protection for harsh environments
• Flexible runtime configurations
• Global voltage/frequency compatibility
• Optional parallel operation

This enterprise-grade Online UPS solution combines advanced power conditioning with comprehensive monitoring capabilities, delivering maximum uptime for critical operations. The versatile rack/tower design ensures deployment flexibility across various infrastructure requirements.

Key Protection Features:

• Multi-stage voltage regulation (110-300VAC input range)
• Instantaneous battery transfer during outages
• Advanced surge protection (8kV/20kA rating)
• Overload tolerance:

110% load for 60 minutes

125% load for 10 minutes

150% load for 1 minute

Technical Specifications Overview:

Power Performance:

Battery System:

• Configurable battery banks (32-40 units)
• Adjustable charging current (1A-12A)
• Precision voltage regulation (±1%)
• Shared battery group support

Physical Configuration

Form Factor: 3U rack-mountable (680×438×133mm)

Weight: 30kg

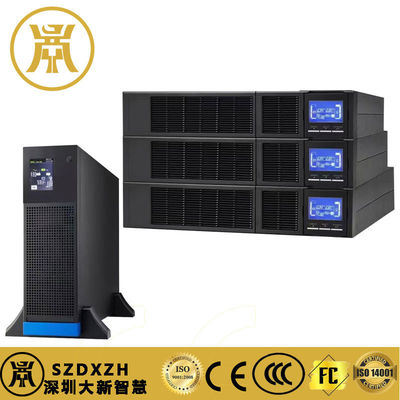

Installation: Rack or tower convertible

Rack/Tower Convertible:
