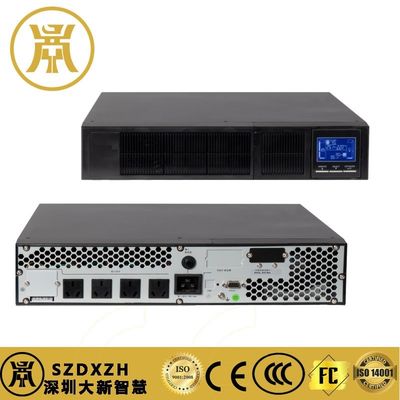

3U Online UPS 15kVA Multi Stage UPS Surge Protection UPS Mission Critical Power Protection Solutions

3U Online UPS Mission-Critical Power Protection Solutions with Multi-Stage Surge Protection

Premium Online UPS Technology for Demanding Environments

Our high-frequency rack/tower convertible Online UPS systems deliver true double-conversion power protection for industrial and commercial applications. The 15K-20KVA models feature:

Comprehensive Power Protection:

1. Wide Input Voltage Range: 110-300VAC operation
2. Multi-Stage Surge Protection: 8kV/20kA rating
3. Advanced Battery Management: 3-stage smart charging
4. Overload Capacity:

• 110% load: 60 minutes
• 125% load: 10 minutes
• 150% load: 1 minute

Ideal Applications:

✓ Industrial automation systems
✓ Data center power backup
✓ Medical equipment protection
✓ Telecom infrastructure
✓ Financial transaction systems

Key Technical Specifications:

Advanced Battery Features:

• Configurable battery banks (32-40 units)
• Adjustable charging current (1A-12A)
• Precision charging voltage (±1% accuracy)
• Shared battery group support

Enterprise Management Capabilities:

1. Intelligent Monitoring System:

>Multi-Interface Connectivity:

• RS232/RS485 communication
• SNMP network management
• USB connectivity

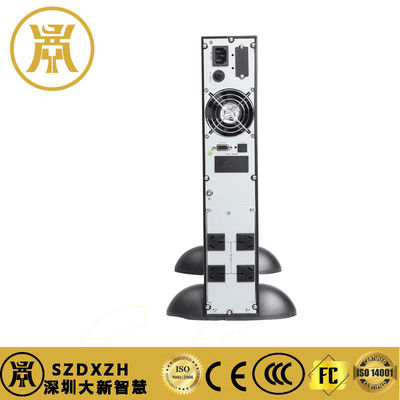

Back view:

>Cross-Platform Support:

• Windows (all versions)
• Linux/Mac compatible

2. Operational Advantages:

• DSP-Controlled Power Conversion
• Automatic Voltage Regulation
• Generator Compatibility
• Dual Input Support
• Optional Parallel Operation

3. Environmental Specifications:

• Operating Temperature: 0°C to 40°C
• Humidity Tolerance: <95% non-condensing
• Protection Rating: IP20
• Altitude Limit: <1000m

Physical Configuration:

• Form Factor: 3U rack-mountable (680×438×133mm)
• Weight: 30kg (15KVA model)
• Installation Flexibility: Rack or tower convertible

​

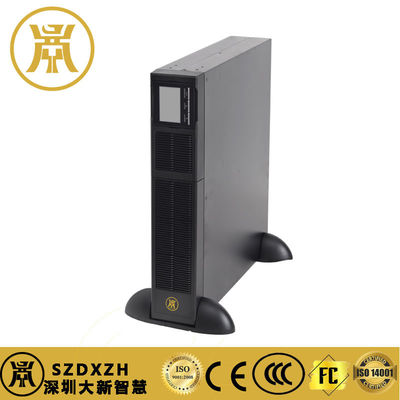

Rack/Tower Convertible:

Why Our Online UPS Stands Out:

• Pure sine wave output for sensitive equipment
• Military-grade protection for harsh environments
• Expandable runtime configurations
• Energy-efficient ECO mode
• Global voltage compatibility (50/60Hz)

​

This industrial-grade Online UPS solution combines advanced power protection with enterprise management features, ensuring maximum reliability for critical operations. The rack/tower convertible design provides deployment versatility across various infrastructure requirements.
