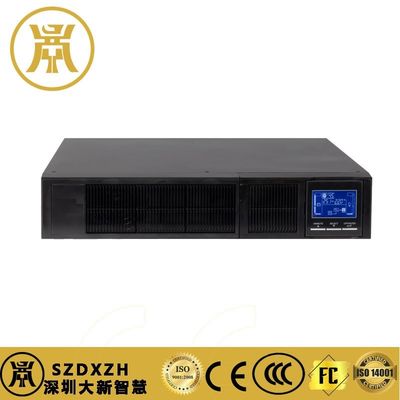

Industrial High Frequency UPS 0ms Transfer Rack Mount Online UPS H1KR(L)-H10KR(L) Series

H1KR(L)-H10KR(L) Series High-Frequency Rackmount Online UPS Best For Industrial Applications

Core Advantages:

1. True Online Double Conversion

• 0ms transfer time ensures uninterrupted power supply (UPS) for sensitive loads
• Pure sine wave output (<3% THD) compliant with IEEE 519 standards

2. Scalable Power Solutions

• Power range: 1kVA/0.8kW to 10kVA/8kW
• Modular design supports N+1 redundancy (for H6KR/H10KR models)

3. Industrial-Grade Reliability

• Wide input voltage range (110-300VAC) for harsh grid conditions
• IGBT rectifier technology with up to 98.5% efficiency

Technical Specifications:

Recommended Application Pairings:

(Click for product detials by model)

• H1KR(L): Network closets, POS systems
• H2KR(L): Branch offices, telecom nodes
• H3KR(L): Industrial PLCs, medical devices
• H6KR(L): Mid-size data centers, cloud nodes
• H10KR(L): Enterprise server rooms, airport ATC

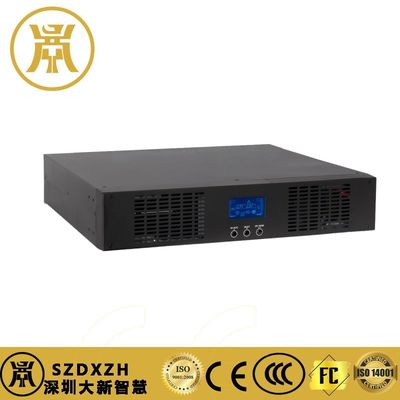

LCD Display:

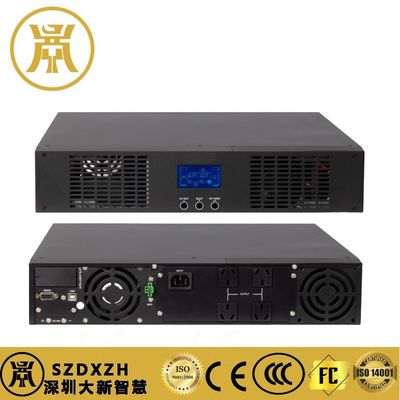

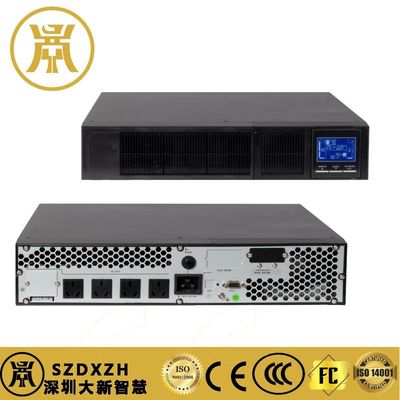

Back view:

Key Features:

1. Generator Compatibility

• Works with 2x capacity generators (all models)
• Auto-synchronization for seamless grid-to-generator transition

2. Smart Monitoring

• LCD interface + SNMP/RS-232/USB connectivity
• Supports Windows/Linux/MAC power management

3. Flexible Deployment

• Rackmount or tower installation (H1KR-H6KR)
• Optional DIN rail kit for industrial control panels (H3KR/H6KR)

Application Scenarios:

1. Data Centers

• Hot-swappable batteries minimize downtime
• EPO (Emergency Power Off) support for safety compliance

2. Industrial Facilities

• IP20-rated enclosure resists dust/particulates
• Operates at -25°C to +60°C (with extended kit)

3. Healthcare/Telecom

• Medical-grade isolation (optional for H6KR/H10KR)
• <50dB noise level for quiet environments

Why Choose This UPS Series?

• Certified Safety: UL 1778, IEC 62040-3, RoHS
• Future-Proof: Lithium-ion battery ready (H6KR/H10KR)
• Global Support: 3-year warranty with 24/7 technical service

Request a customized quote today for your specific power backup requirements.
