Industrial-Grade 200kVA Online UPS Intelligent Battery Management System For Critical Infrastructure Tower Type Installation

Product Overview:

The EX3C3-200kVA Online UPS is a pure double-conversion uninterruptible power supply designed for mission-critical applications requiring zero downtime and high-efficiency power conditioning. With 200kVA/200kW capacity, this three-phase UPS system ensures voltage stabilization, surge protection, and seamless battery backup for data centers, industrial facilities, and telecom networks.

Applications:

✔ Data Centers – Tier III/IV compliance with 99.999% uptime
✔ Industrial Automation – Surge protection for PLCs and motors
✔ Telecom Base Stations – Weatherproof design for harsh environments
✔ Healthcare & Financial IT – Zero-interruption power for critical loads

Upgrade to the EX3C3-200kVA Online UPS for unmatched power reliability and energy savings.

Why Choose This UPS System?

1. Pure double-conversion technology for clean power output
2. Parallel capability (up to 6 units) for N+1 redundancy
3. Maintenance bypass for hassle-free servicing
4. Global voltage compatibility (110V–300V AC)

Technical Specifications:

Key Features & Benefits:

1. Advanced Power Protection

• Full-time voltage regulation (±1% output accuracy)
• Multi-stage surge suppression (IEEE C62.41 compliant)
• 0ms transfer time between modes (online/battery/bypass)
• Overload protection:

 105-110% load: 60 minutes

 150%+ load: 200ms cutoff

2. Intelligent Battery Management

• 3-stage charging (bulk/absorption/float) for optimized battery life
• Adjustable battery count (32–40 cells)
• High-current charging (3–54A programmable)
• Generator-compatible input (40–70Hz range)

3. High-Efficiency Operation

• >95.5% efficiency in AC mode
• ECO mode reduces energy waste
• Active PFC (≥0.99 power factor at full load)

4. Robust Monitoring & Control

• LCD interface for real-time status tracking
• Remote management via:

1. RS232/RS485
2. SNMP (optional)
3. USB/network adapters

• EPO (Emergency Power Off) function

LCD Display:

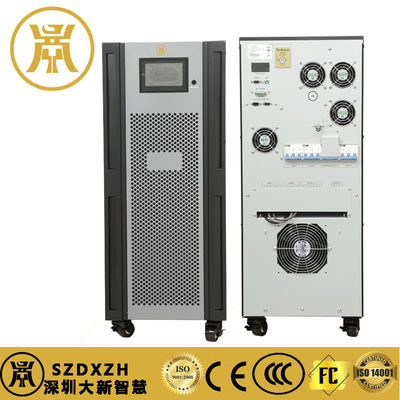

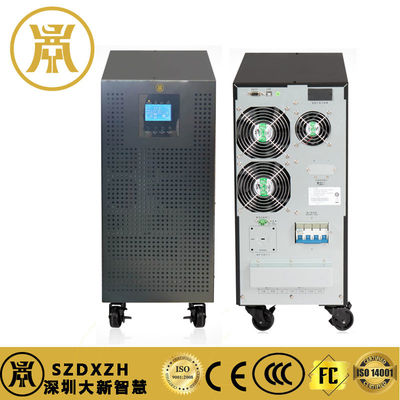

Back View:

5. Industrial-Grade Durability

• "Three-proof" coating (humidity/dust/corrosion resistance)
• Wide temperature tolerance (0–40°C)
• 75dB noise rating @1m

Support Services:

• 24/7 remote monitoring
• Remote maintenance programs
• Certified technician training
• Custom service agreements
