Overload Protection High Frequency UPS 3000VA / 2400W UPS With LCD Display

1 set
MOQ
Negotiation
Price
Overload Protection High Frequency UPS 3000VA / 2400W UPS With LCD Display
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: High Frequency UPS
Net Weight (Standard Machine): 7.4kg
Output Voltage: 200/208/220/230/240VAC
Size(D*W*H): 397*145*220mm
Transfer Time: 0 Ms
Input Frequency: 40Hz-70Hz
Highlight:

Overload Protection High Frequency UPS

,

High Frequency UPS 3000VA

,

2400W UPS With LCD Display

Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: Daxin
Certification: ISO9001,CE,3C,FCC,TLC,IP55
Model Number: H3K(L)
Payment & Shipping Terms
Packaging Details: Woodcase
Delivery Time: 20-40 days
Payment Terms: T/TD/A,Western Union,Paypal,etc
Supply Ability: 3000pcs/month
Product Description
High-Frequency 3000VA/2400W Online UPS With LCD Display And Overload Protection


Protecting the power and environment of your mission critical electronic systems



Your data center and edge computing sites are the core of your business. Intelligent, efficient power and thermal infrastructure are critical to ensuring continuous access to vital applications and data. Daxin power and thermal management systems are designed to protect your IT environment and adapt to your changing needs.



Daxin provides global power and thermal management solutions with a portfolio of most efficient and reliable power and cooling technologies in the market. Daxin offers a complete line of energy-efficient and reliable technologies including UPS, racks, rack enclosures, rack cooling, and PDUs. These technologies offer unmatched efficiency and reliability for mission-critical applications, as well as controls to optimize uptime.



Best Suited For:

Banking, Financial and Insurance Education Healthcare Government Telecom Retail and Wholesale


High-Frequency 3000VA/2400W Online UPS With LCD Display And Overload Protection Product Introduction:


The High-Frequency 3000VA/2400W Online UPS (Model H3K(L)) is a versatile and reliable power protection solution designed to meet the demanding requirements of modern industries. With its advanced features, compact design, and support for external battery connectivity, the H3K(L) ensures uninterrupted power supply for critical applications. Whether for standard or extended runtime needs, this UPS delivers consistent performance and reliability, providing peace of mind in power-critical environments.





Application/Usage :

  • Government
  • Military
  • Banking
  • Financial
  • Server
  • Network Workstation
  • Network Closet
  • VoIP Device
  • Large Network Peripheral
  • Aerospace
  • Missile
  • IT Equipment

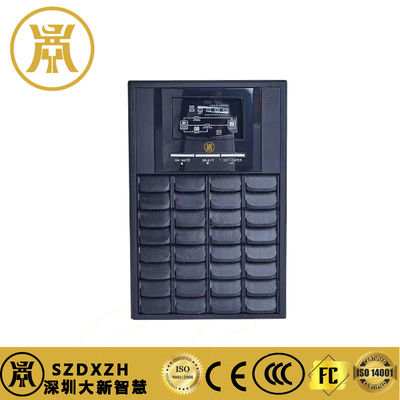

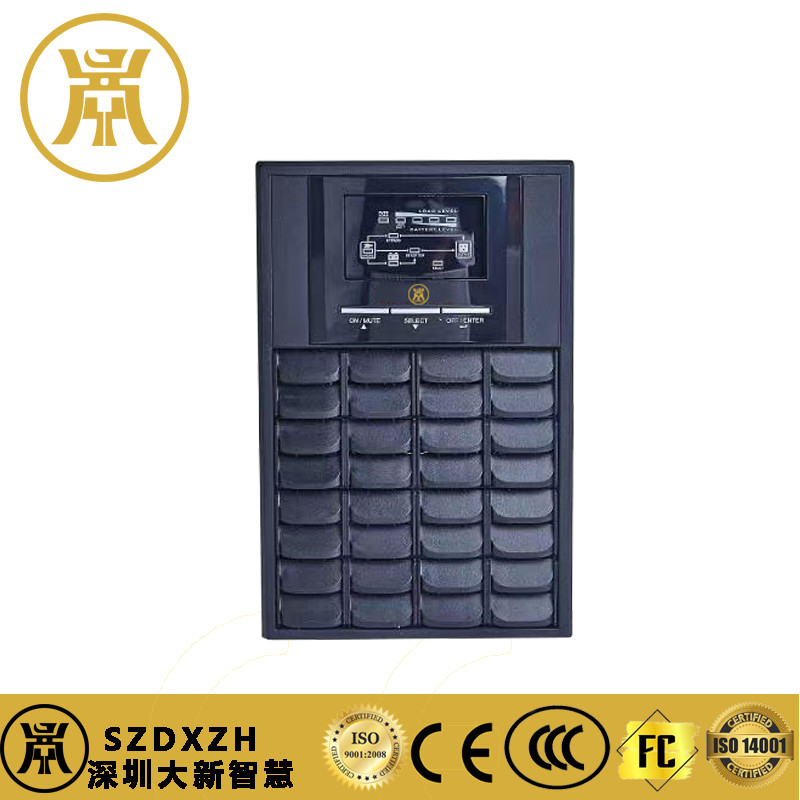

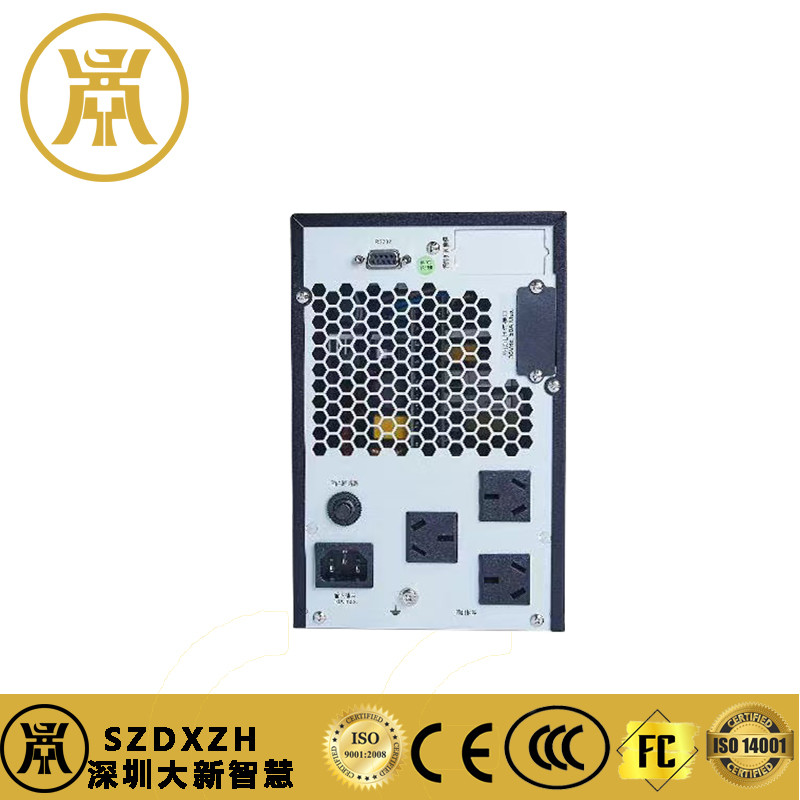

LCD Display and Back view:



Overload Protection High Frequency UPS 3000VA / 2400W UPS With LCD Display 0



Overload Protection High Frequency UPS 3000VA / 2400W UPS With LCD Display 1



Technical Parameters



Category Specification
Model H3K(L)
Phase Single-phase with grounding
Capacity 3000VA / 2400W
Input
- Voltage Range 110V - 300VAC (50% load), 160V - 280VAC (100% load)
- Frequency Range 40Hz - 70Hz
- Power Factor ≥0.99
Output
- Output Voltage 200/208/220/230/240VAC
- Voltage Range (Battery) ±1%
- Frequency Range (Sync) 47Hz - 53Hz or 57Hz - 63Hz
- Frequency Range (Battery) 50Hz ±0.25Hz or 60Hz ±0.3Hz
- Surge Ratio 3:1
- THD (Linear Load) ≤3%
- THD (Non-linear Load) ≤6%
- Transfer Time (AC to DC) 0ms
- Transfer Time (Inverter to Bypass) 4ms (under standard conditions)
- Waveform (Battery Mode) Pure sine wave
Efficiency
- Mains Mode 90%
- Battery Mode 88%
Battery
- Standard Configuration 12V/9AH, Quantity: 6, Max Charging Current: 1.0A
- External Battery Support Compatible with external battery packs for extended runtime
Physical Dimensions
- Dimensions 397mm (D) x 145mm (W) x 220mm (H)
- Net Weight 7.4kg
Environmental Conditions
- Operating Temperature 0°C to 40°C
- Relative Humidity 20% to 90% (non-condensing)
- Noise Level <50dBA at 1 meter
Control & Management
- Smart RS-232/USB Compatible with Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, MAC
- Optional SNMP Card Enables network management and remote monitoring via SNMP







Key Advantages:

  • Compact Design: With dimensions of 397mm x 145mm x 220mm and a net weight of 7.4kg, the H3K(L) is easy to install and relocate.

  • Extended Runtime: Supports external battery connectivity, allowing for customized runtime based on specific needs.

  • High Efficiency: Achieves 90% efficiency in mains mode and 88% in battery mode, ensuring optimal energy use.

  • Reliable Protection: The double conversion technology and optional isolation transformer protect connected equipment from power anomalies.

  • User-Friendly Interface: The LCD display provides clear monitoring of UPS status, ensuring ease of use.







                                  ——UPS power solution service provider——

 Overload Protection High Frequency UPS 3000VA / 2400W UPS With LCD Display 2
