Uninterrupted Power. Unmatched Performance.

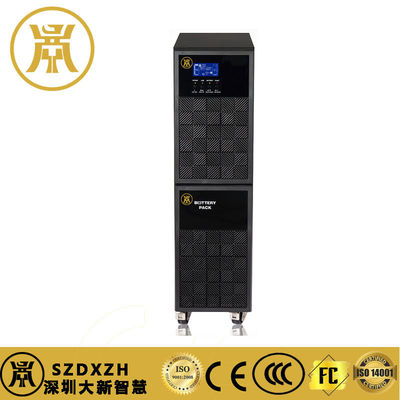

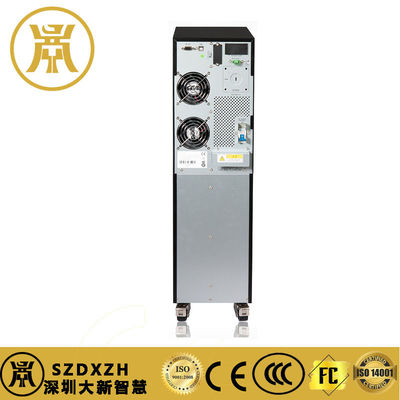

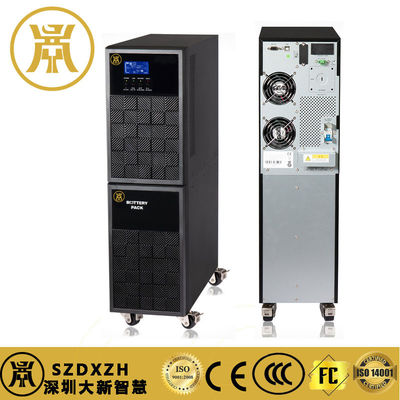

Designed for mission-critical applications, our High-Frequency Online UPS Power Supply (H10KL) delivers 10KVA/8KW of pure sine wave power with true online double-conversion technology, ensuring zero downtime for sensitive equipment across industries—government, finance, telecommunications, healthcare, energy, and beyond.
Why Choose the H10KL?
✔ True Online Double Conversion – Seamless AC-to-DC and inverter-to-bypass transitions (0ms transfer time) for continuous, clean power.
✔ High Efficiency & Wide Input Range – 93% efficiency in line mode with 110V–300V input voltage tolerance, compatible with generators.
✔ Advanced Power Factor Correction (PFC) – Input PF ≥0.99 and output PF up to 0.8, optimizing energy usage.
✔ Intelligent Remote Monitoring – SNMP/USB/RS-232 support for real-time management via Windows®, Linux, Unix, and MAC systems.
✔ ECO Mode & DSP Technology – Reduce operational costs while maintaining reliability with DSP-controlled switching and an optional maintenance bypass.
✔ Scalable Battery Runtime – External battery port supports expansion (16–20 cells configurable) with hot-swappable replacement.
✔ Built for Critical Environments – Isolation transformer (optional) and ≤3% THD ensure stable power for sensitive medical/IT equipment.
Technical Highlights
| Parameter |
Specification |
| Capacity |
10KVA / 8KW |
| Input Voltage |
110–300VAC (50% load); 176–300VAC (100% load) |
| Output Voltage |
208/220/230/240VAC (±1% in battery mode) |
| Frequency Range |
46–54Hz / 56–64Hz (synchronized) |
| Waveform |
Pure sine wave |
| Noise Level |
<58dB @ 1m |
LCD Display:
Smart Control & Proactive Protection
- LCD/LED Display – Real-time monitoring of load, battery status, and operational modes.
- Smart Battery Management – Prolongs battery life with adaptive charging (1A–6A adjustable).
- Emergency Power Off (EPO) – Safeguard connected devices during critical events.
Ideal for:
- Data Centers & Servers – Guaranteed uptime with SNMP remote alerts.
- Medical & Lab Equipment – Clean power with <3% THD for precision instruments.
- Telecom & Broadcast – Wide voltage range ensures stability in fluctuating grids.
Upgrade to Enterprise-Grade Power Security.
Minimize risks, maximize efficiency—contact us today for a customized solution tailored to your business needs.
Designed for resilience. Trusted by industries worldwide.
(Note: Optional configurations include SNMP card, isolation transformer, and extended battery modules.)
Key Features:
- Double Conversion Online UPS (Industry-standard topology)
- Pure Sine Wave Output (Critical for sensitive electronics)
- THD (Total Harmonic Distortion) (Compliance with IEEE/ISO standards)
- Hot-Swappable Batteries (Minimizes maintenance downtime)
- SNMP Remote Management (Enterprise IT integration)
A glimpse of the production line:
