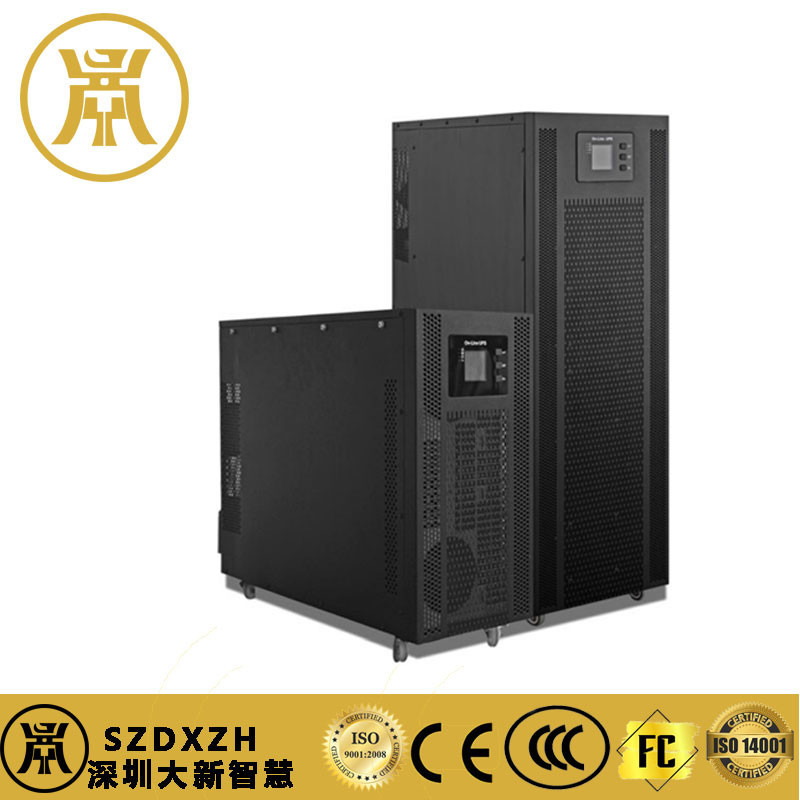

Three Phase 3H10KL High-Frequency Online UPS – Industrial-Grade Power Protection Solution

Advanced Power Conditioning for Mission-Critical Environments

The 3H10KL Industrial Online UPS represents the next generation of power protection, combining military-grade reliability with enterprise-class manageability. This 10KVA/8KW three-phase input UPS delivers clean, continuous power through its pure double conversion topology, making it the ideal solution for financial institutions, healthcare facilities, and industrial automation systems where power quality is non-negotiable.

Core Technology & Competitive Advantages

1. Advanced Power Protection

• Pure online double conversion with 0ms transfer time
• Output voltage regulation within ±1%
• Pure sine wave output with ≤2% THD (linear loads)

2. Intelligent Battery Management

• Configurable battery banks (16-20 cells)
• Adjustable charging current (1-4A default)
• Automatic restart after power recovery

3. Robust System Design

• MCU+DSP dual control system
• Optional isolation transformer (factory installed)
• Generator compatible (requires 2x UPS capacity)

4. Comprehensive Monitoring

• LCD display for real-time system status
• RS232/RS485 and USB communication ports
• Optional SNMP network monitoring

5. Safety & Protection

• Multi-level protection: overload/short circuit/over-temperature
• Emergency Power Off (EPO) function
• Optional manual maintenance bypass

Technical Parameters:

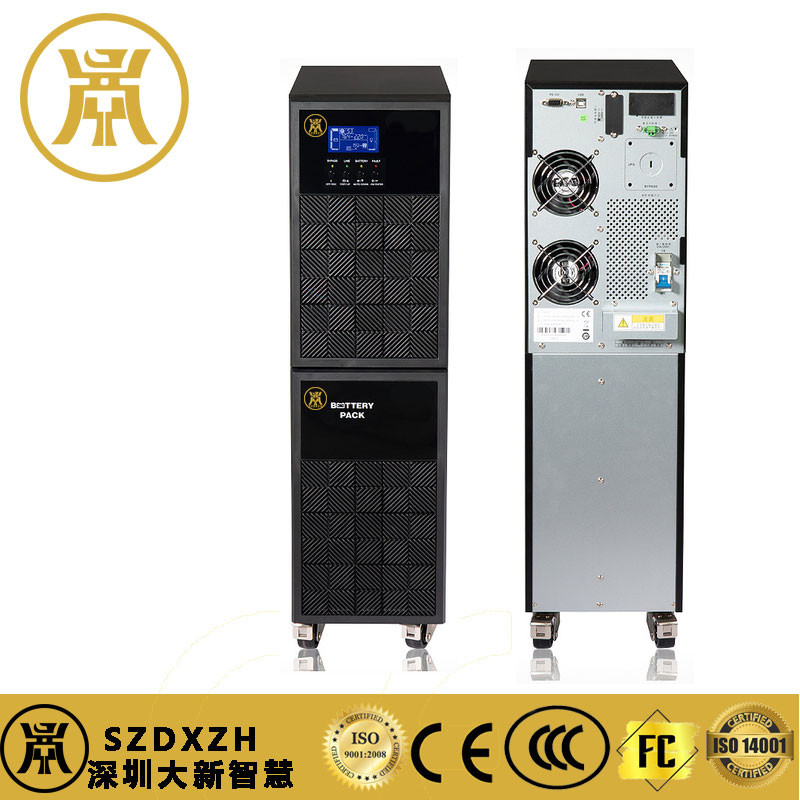

 Back view:

Applications:

• Data Centers & IT Infrastructure – Ensures server uptime with seamless failover
• Medical Facilities – Protects diagnostic imaging and lab equipment
• Industrial Automation – Safeguards PLCs, robotics, and control systems
• Telecommunications – Maintains network stability during power fluctuations

Why Choose 3H10KL?

1. Military-grade reliability with full protection features
2. Flexible configuration for different power needs
3. Intelligent monitoring for easy maintenance
4. Stable performance in harsh environments

Contact our power solutions team for more details.

Keywords: Industrial Online UPS, Double Conversion UPS, 10KVA Power Protection, Three-phase Input UPS, Mission Critical Power Solution

(Options: Isolation transformer, SNMP card, extended battery modules)
