Features

Specifications

Name: High Frequency UPS

Net Weight (Standard Machine): 27.6kg

Battery QTY: 6

Size: 421 X 190 X 318

Battery Model: 12V / 9AH

Highlight:

2400W High Frequency UPS

High Frequency UPS Single Input

Single Output Double Conversion Online UPS

Basic Infomation

Place of Origin: Shenzhen,China

Brand Name: Daxin

Certification: ISO9001,CE,3C,FCC,TLC,IP55

Model Number: H3K

Payment & Shipping Terms

Packaging Details: Woodcase

Delivery Time: 20-40 days

Payment Terms: T/TD/A,Western Union,Paypal,etc

Supply Ability: 3000pcs/month

Gallery

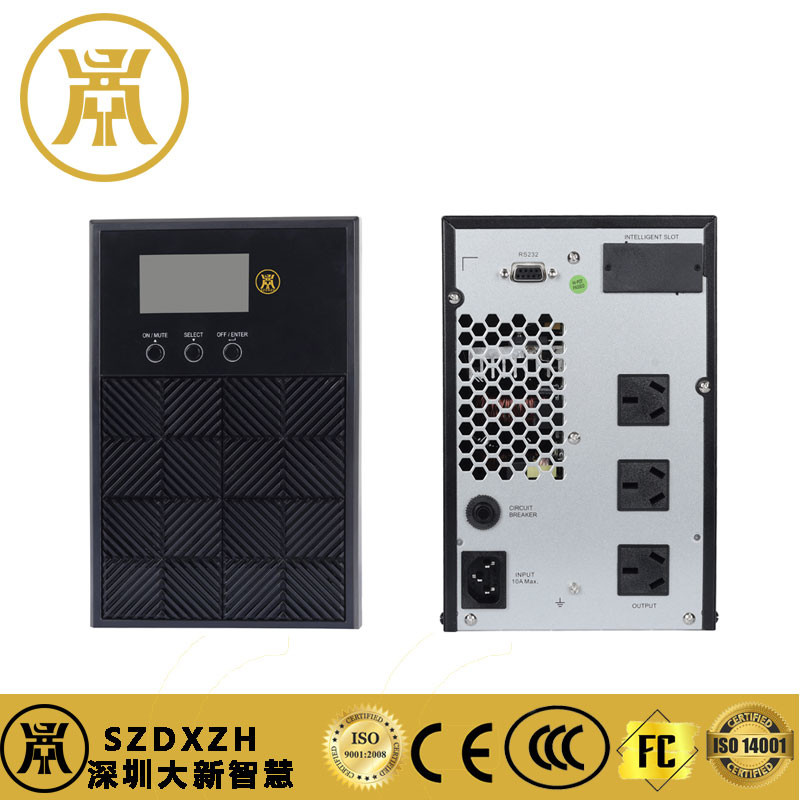

2400W High Frequency UPS Single Input Single Output Double Conversion Online UPS

Product Description

High Frequency UPS Single Input Single Output Double Conversion Online UPS 2400W Capacity

Product Introduction:

Power Range: 3K VA

Working mode: single input and single output, double conversion online operation.

Application scope: Widely used in various industries such as government, finance, communications, education, transportation, meteorology, radio and television, industrial and commercial taxation, medical care, energy and electricity, etc.

Features:

·True online double conversion
·Microprocessor control ensures high reliability
·Input power factor correction
·Output power factor can reach 0.8
·Wide mains input range (110 V – 300 V)
·Efficient frequency conversion mode
·Generator compatible
·Optional exquisite SNMP card can be perfectly monitored alone or with USB, RS232
·Simple operation control through the display, and comprehensive display monitoring UPS status
·ECO mode provides energy saving effect
·Emergency power off (EPO)

Technical Parameters:

model		H3K
Phase		Single-phase grounding
capacity		3000 VA / 2400 W
enter
Voltage range		110 -300VAC at 50% load
		160 -280 VAC at 100% load
Frequency range		40Hz ~ 70 Hz
Power Factor		≧0.99
Output
Output voltage		200/208/220/230/240VAC
Voltage range (battery mode)		± 1%
Frequency range (synchronous correction range)		47~53 Hz or 57~63 Hz
Frequency range (battery mode)		50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
Surge ratio		3:01
Harmonic distortion		≦ 3% THD (Linear Load)
		≦6% THD (non-linear load )
Conversion time	AC to DC	0ms
	Inverter to Bypass	4 ms (under standard conditions)
Waveform (Battery Mode)		Pure sine wave
efficiency
Mains mode		90 %
Battery Mode		88 %
Battery
Standard Machine	Battery Model	12V / 9AH
	quantity	6
	Maximum charging current	1.0A (max)
Long-acting machine	Battery Model	Depends on battery configuration
	quantity	8
	Maximum charging current	1A/2A/4A/6A (adjustable)
Appearance
LCD or LED display		Load size, Battery capacity, AC mode, Battery mode, Bypass mode, Fault indication
Dimensions
Standard Machine	Dimensions, depth x width x height (mm)	421 x 190 x 318
	Net weight (kg)	27.6
Long-lasting models	Dimensions, depth x width x height (mm)	397 x 145 x 220
	Net weight (kg)	7.4
Usage Environment
Temperature and humidity		Relative humidity 20-90 % and temperature 0- 40°C (non-condensing)
noise		Less than 50dBA @ 1 meter
Control Management
Smart RS-232 / USB		Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
Optional SNMP		Power management supports SNMP management and network management

——UPS power solution service provider——

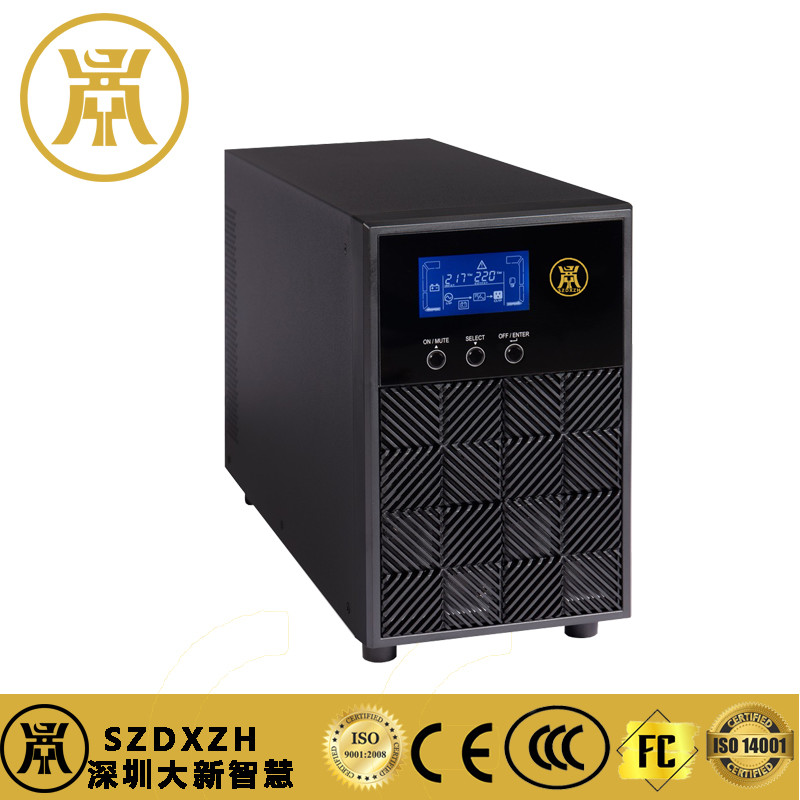

online UPS 2400W single output

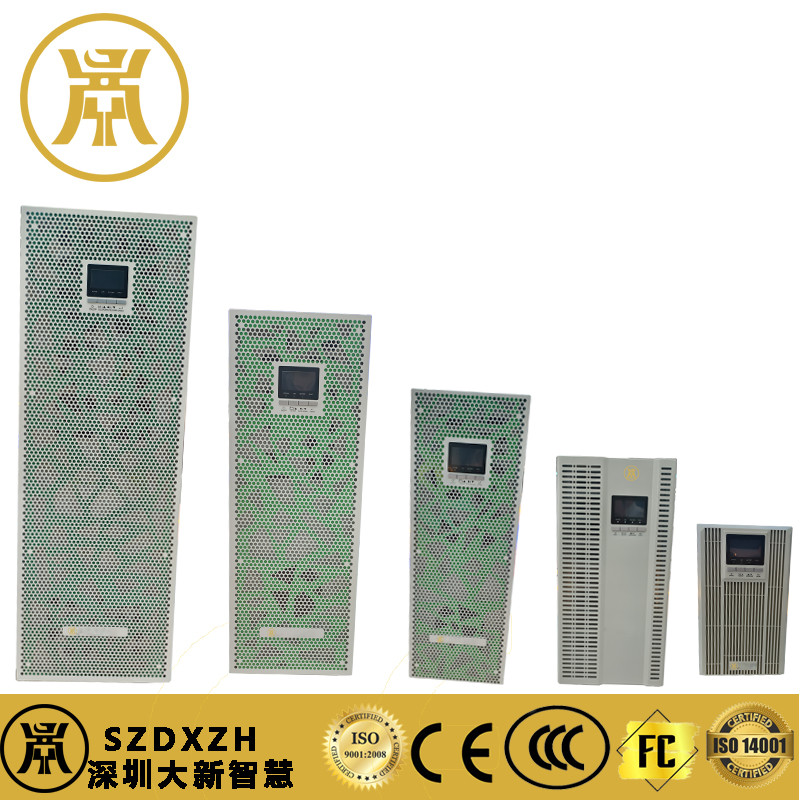

More pics:

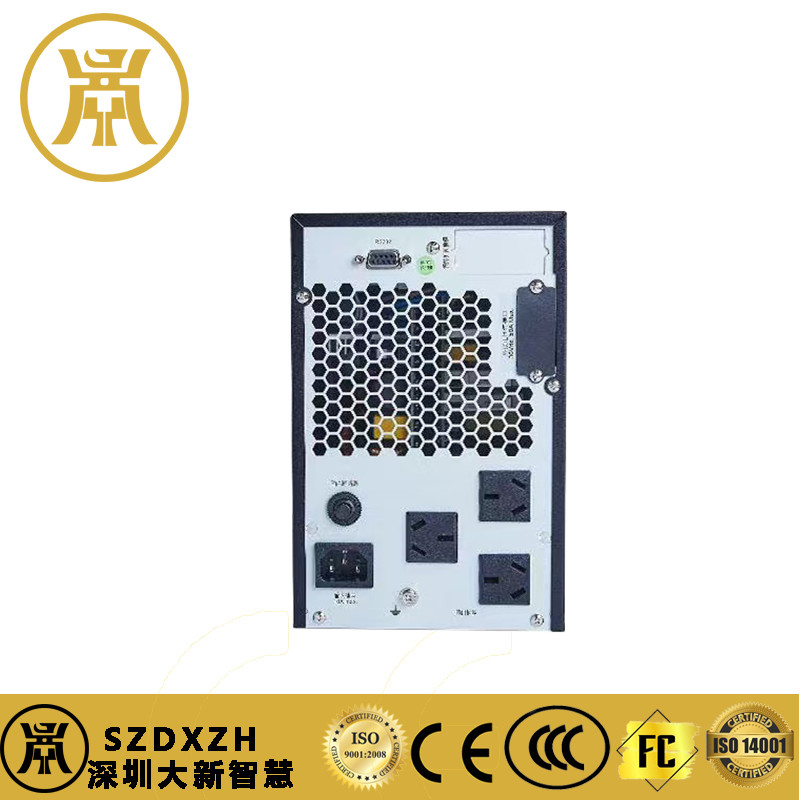

online UPS single input single output
