Military Grade Outdoor Equipment Cabinet 24VDC 1KVA Waterproof Power Supply Enclosure

Military-Grade Reliability UPS Outdoor Cabinet – 24VDC 1KVA Mission-Critical Power Solution

Engineering Excellence

The AAM1K-24V Industrial UPS Outdoor Cabinet delivers 1KVA/800W of continuous power with military-grade components designed for 24/7 operation in extreme environments.

Key Technical Advantages

• Battery Optimization
  Reduces discharge cycles by 30% compared to conventional systems, extending battery lifespan.

​

• Military-Grade Reliability
  DSP-controlled power regulation maintains <3% output voltage deviation under dynamic loads.

​

• Future-Ready Architecture
  Hot-swappable expansion slots for IoT/Industry 4.0 integrations.

Advanced Power Architecture

• Dual-stage conversion system:

  • AC/DC: 92% efficiency with harmonic distortion <5%

  • DC/AC: Pure sine wave (<3% THD)

• Dynamic load handling:

  • 150% overload for 30 seconds

  • 200% surge capacity for 500ms

Battery Subsystem

• 24V DC battery configuration:

  • Supports 2×12V (series) or 4×6V configurations

  • Automatic cell balancing

• Smart charging profiles:

  • LiFePO4: CC/CV with 0.5% voltage accuracy

  • Lead-acid: Temperature-compensated 3-stage

Environmental Hardening

• Operational extremes:

  • -40°C cold start capability
    +70°C thermal shutdown

• Vibration resistance:

  • 5-500Hz, 5Grms per IEC 60068-2-64

Monitoring & Intelligence

• Predictive analytics:

  • Capacitor wear monitoring

  • Fan life estimation

• Cybersecurity:

  • TLS 1.2 encrypted communications

  • Role-based access control

Deployment Features

• Modular expansion:

  • Parallel capability for N+1 redundancy

  • Hot-swap power modules

• Conduit-ready:

  • 6× 3/4" NPT threaded entries

  • Dual-compartment design (power/electronics)

Compliance Matrix

• Safety: UL 1778, EN 62040-1

• EMC: EN 61000-6-2/4

• Transport: ISTA 3A

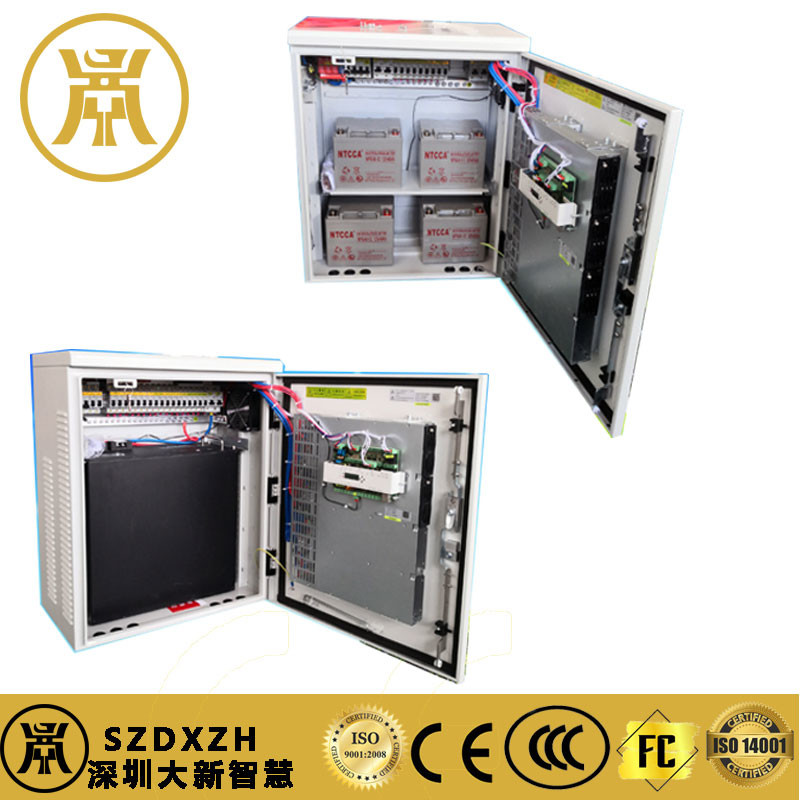

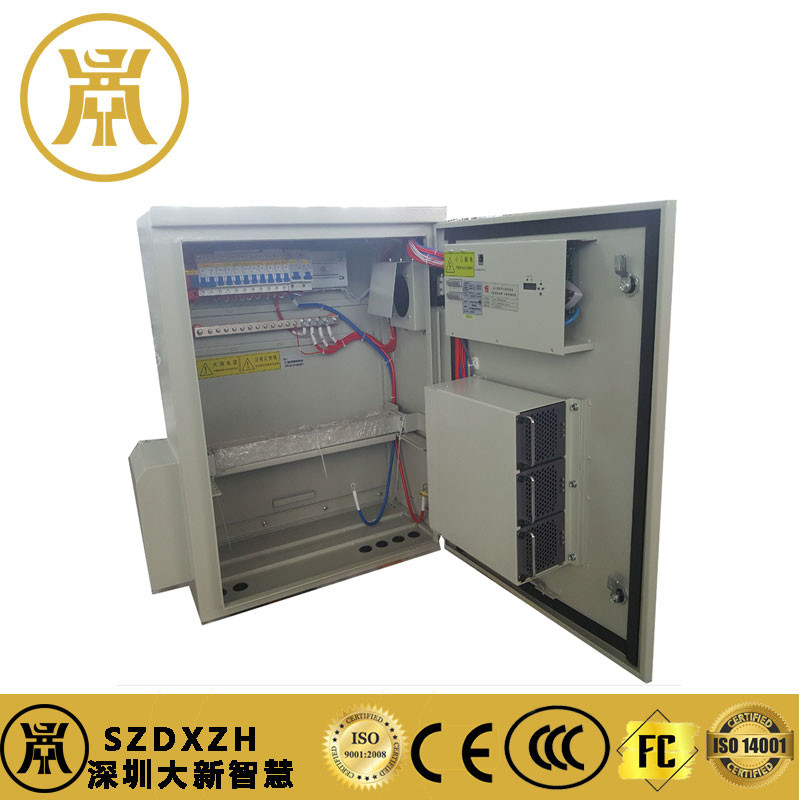

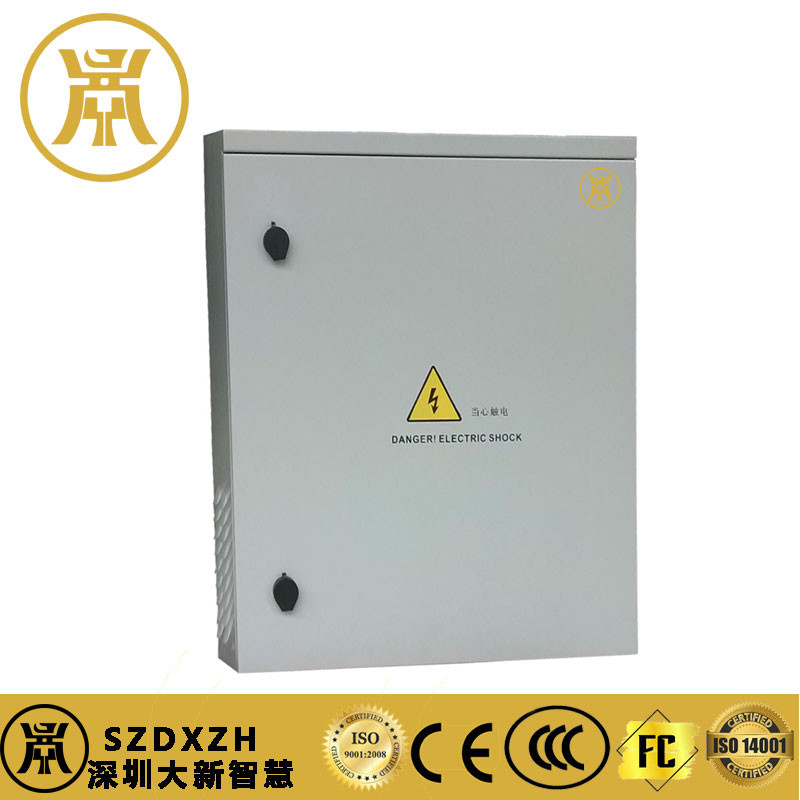

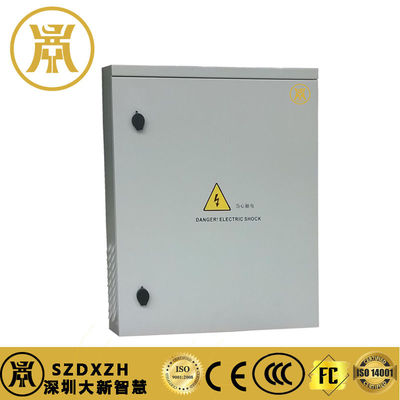

Product Images:
