Compact Outdoor UPS Cabinet 500VA Wall Mounted Telecom Cabinet With Remote Monitor

Outdoor UPS Power Cabinet – Compact 500VA Wall-Mounted Solution With Remote Monitor

Product Overview

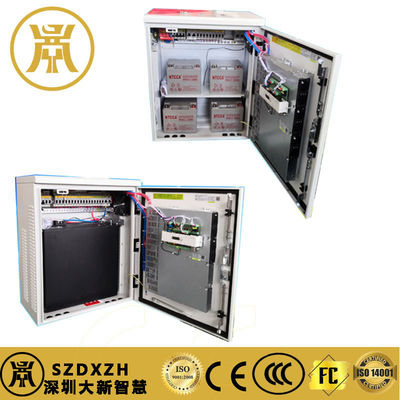

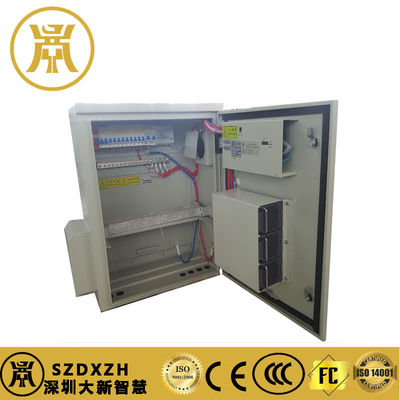

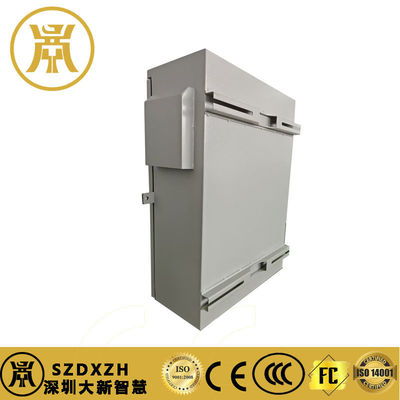

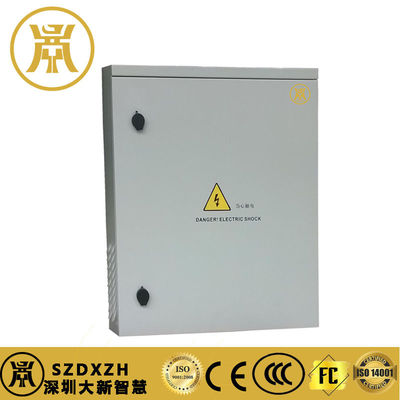

The AAM500-12V Outdoor UPS Power Cabinet is a rugged, compact uninterruptible power supply system designed for remote telecommunications, surveillance systems, and IoT applications. This 12V DC input system delivers 500VA/400W of pure sine wave AC output, ensuring seamless power continuity for sensitive equipment in harsh outdoor environments.

Ideal for remote telecom sites & small-scale power backup

Key Features

• 500VA/400W output with 220V AC pure sine wave
• 12V DC input compatible with lead-acid/LiFePO4 batteries
• Dual-conversion online UPS with 0ms transfer time
• Wide AC input range (172–268V AC) and 0.98 power factor
• IP54 (outdoor)/IP20 (indoor) protection

Technical Specifications

Monitoring & Control:

1. Local interface:

• LED status indicators
• Audible alarms

2. Remote monitoring options:

• Standard RS232 port
• Optional RS485/SNMP cards
• Dry contact alarms (configurable)

Compliance & Certifications

• Safety: CE, RoHS

• EMC: EN55022 Class A

• Environmental: IEC 60068-2 (shock/vibration)

Applications:

1. Remote telecom base stations
2. Traffic monitoring systems
3. Solar-powered installations
4. Security camera networks
