Smart PV Power Cabinet Intelligent Solar Hybrid Power System for Telecom Power Solutions

1 set
MOQ
Negotiation
Price
Smart PV Power Cabinet Intelligent Solar Hybrid Power System for Telecom Power Solutions
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Modular Design
Smart Monitoring: Centralized Control For Solar, Rectifier, Battery, And Load Management.
Wide Compatibility: Supports Hybrid PV-wind Configurations And Grid-tie/off-grid Applications.
ODM/OEM: Provide ODM/OEM Service
Application Scenarios: Off-Grid Remote Sites
Custom Solutions: Scalable Designs For 200A To 500A Systems
Highlight:

Smart PV Power Cabinet

,

Telecom Power Solutions PV Power Cabinet

,

Intelligent Solar Hybrid Power Cabinet
Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: Daxin
Certification: ISO9001,CE,3C,FCC,TLC,IP55
Model Number: ODC-216060F1PU-40U
Payment & Shipping Terms
Packaging Details: Woodcase
Delivery Time: 20-40 days
Payment Terms: T/TD/A,Western Union,Paypal,etc
Supply Ability: 3000pcs/month
Product Description

Smart PV Power Cabinet - Intelligent Solar Hybrid Power System for Telecom Power Solutions



Telecom Power Solutions Intelligent Solar Hybrid Power System Product Overview:



In remote telecom base stations, unstable grid power and high infrastructure costs pose significant challenges. Traditional diesel generators are costly and unsustainable.

Our Smart PV Power Cabinet - Intelligent Solar Hybrid Power System offers a cutting-edge telecom power solution—combining solar energy, intelligent rectification,

and modular design to ensure 24/7 reliability while reducing operational costs and carbon footprint.





Smart PV Power Cabinet for Telecom Power Solution Product Details/Parameter:



No. Model/Specification Parameters
1 Outdoor Cabinet 1. Dimensions: H*W*D 2100*600*600
2. Internal structure: 19-inch Rack, 40U.
3. Material: Galvanized steel. Outer panel: 1.5mm galvanized steel, PEF 20mm, fire rating meets HF-1.
2 Switching Power Supply 1. Power capacity: 400A
2. MPPT solar module: 400A
3. 19-inch rack mounting, height: 9U
4. Equipped with monitoring module, including primary and secondary load shedding.
3 Air Conditioner 1.5KW AC * 1 (optional)
4 Energy Meter Equipped with 3-channel energy metering for multi-party power management.
5 Power Distribution Unit (PDU) AC distribution unit * 1; DC distribution unit * 2
6 Fan fan * 1
7 Temperature Switch temperature switch * 1
8 LED with Switch Door access and LED light switch * 2, LED light * 1
9 Accessories Accessories: Mounting brackets, anchor screws, square nuts



Smart PV Power Cabinet Intelligent Solar Hybrid Power System Key Features & Advantages:

Reliable. Efficient. Sustainable.



Feature Description
High Efficiency MPPT efficiency >99.5%, system efficiency >96% in pure solar mode.
Modular Design Hot-swappable rectifier/MPPT modules; supports N+X redundancy for zero downtime.
Smart Monitoring Centralized control for solar, rectifier, battery, and load management.
Dual Energy Input Solar prioritized, with wind/rectifier backup for uninterrupted power supply.
Wide Compatibility Supports hybrid PV-wind configurations and grid-tie/off-grid applications.



Electrical schematic diagram of photovoltaic communication energy storage system

Smart PV Power Cabinet Intelligent Solar Hybrid Power System for Telecom Power Solutions 0

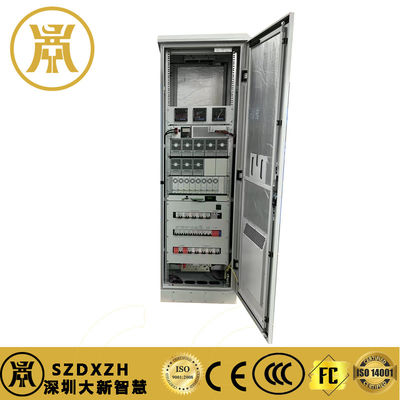

Structure of Solar Energy Control Cabinet:



Smart PV Power Cabinet Intelligent Solar Hybrid Power System for Telecom Power Solutions 1



Core Components

1. Solar MPPT Controller

  • Input Voltage: 60V–150V DC
  • Output Efficiency: >98.2%
  • Tracking Accuracy: >99.5%
  • IP Rating: IP55 (dust/water resistant)

2. Rectifier Module (SR4850G)

  • Input Range: 85V–300V AC
  • Output: 42V–58V DC
  • Efficiency: >95%
  • Temperature Range: -40°C to +75°C

3. Smart Monitoring System

  • Functions: Load shedding, battery testing, temperature compensation, remote control.
  • Interface: User-friendly display with IoT connectivity for real-time alerts.



Smart PV Power Cabinet Intelligent Solar Hybrid Power System Application Scenarios

Scenario 1: Off-Grid Remote Sites

  • Configuration: Solar + Battery + Diesel Backup
  • Workflow: Solar powers loads and charges batteries; diesel activates during low battery.



Scenario 2: Grid-Tie with Energy Sales

  • Configuration: Solar + Inverter + Grid Connection
  • Workflow: Excess solar energy feeds into the grid, reducing costs and generating revenue.



Performance Comparison



Parameter Hybrid System Traditional Grid-Tie
Efficiency >98% 88% (2-stage conversion)
Reliability Uninterrupted via MPPT Grid-dependent
Maintenance Hot-swappable modules Complex inverter replacement
ROI 3–5 years 5–7 years





Why Choose Us?

  • Proven Expertise: Deployed in 500+ sites across harsh environments.
  • Custom Solutions: Scalable designs for 200A to 500A systems.
  • Sustainability: Reduce diesel consumption by 80% and CO₂ emissions by 50%.

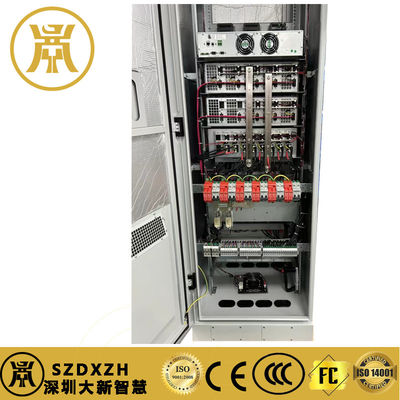

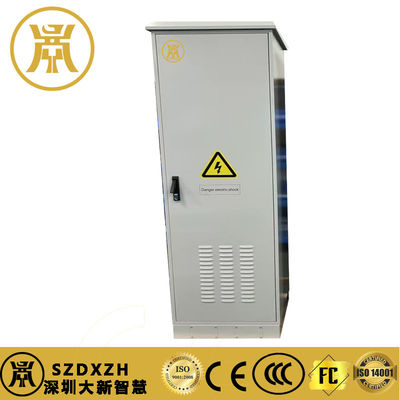

On-site pictures:



Smart PV Power Cabinet Intelligent Solar Hybrid Power System for Telecom Power Solutions 2



Smart PV Power Cabinet Intelligent Solar Hybrid Power System for Telecom Power Solutions 3
