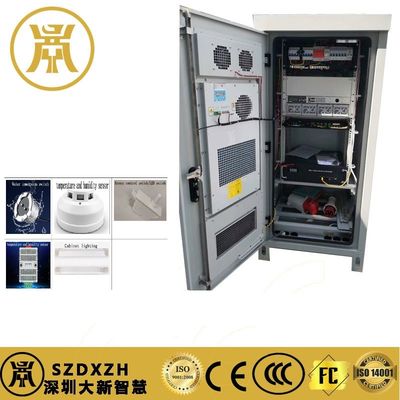

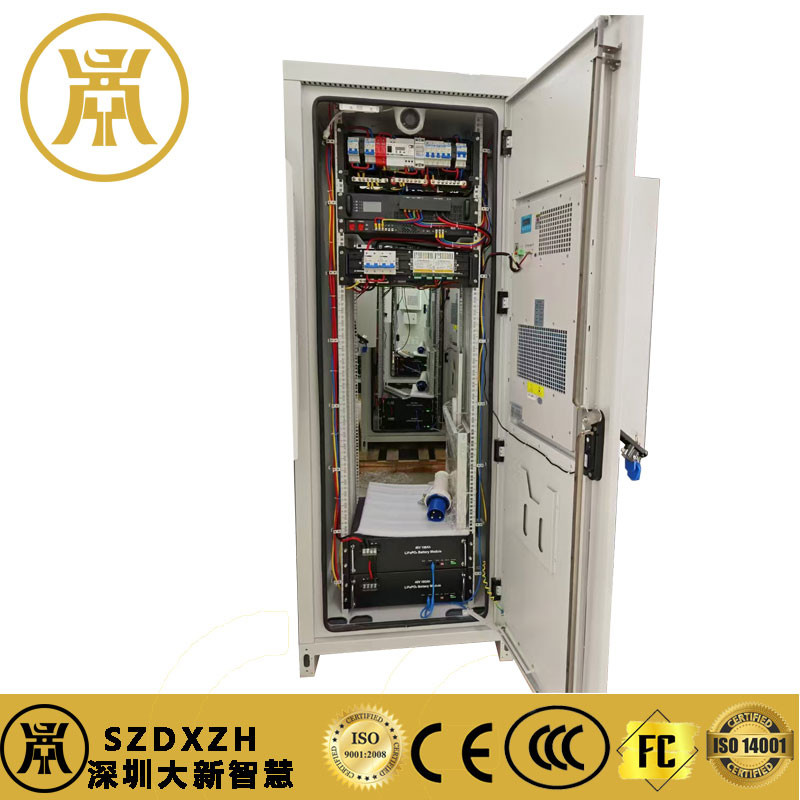

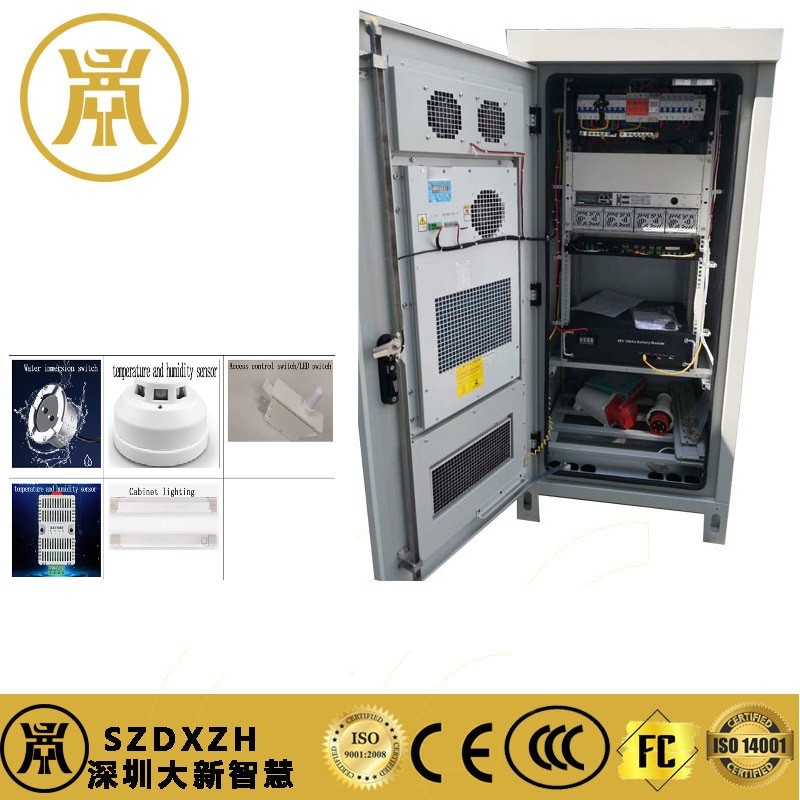

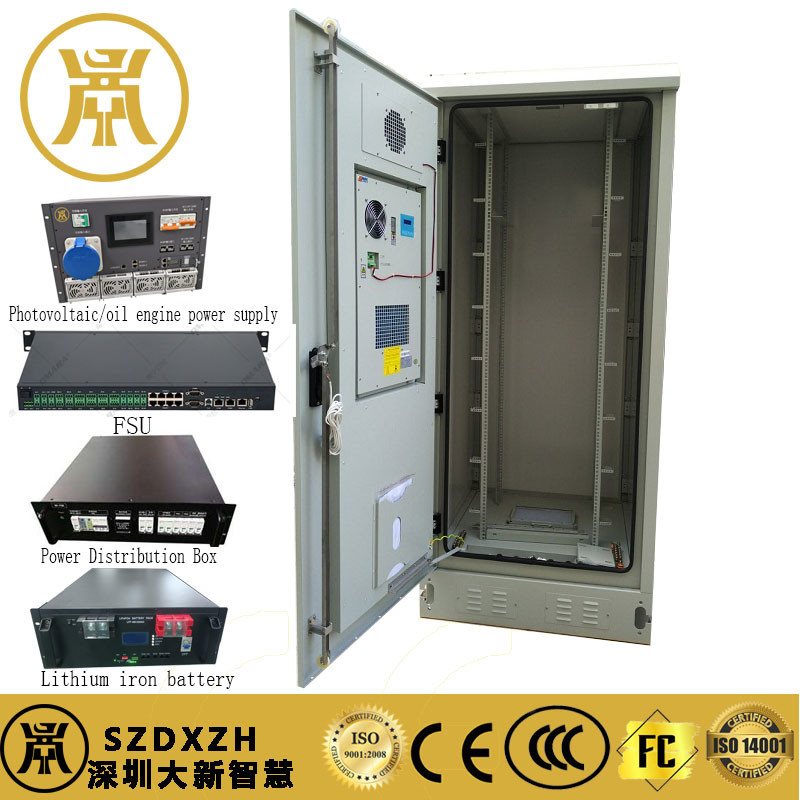

40U Integrated Outdoor Power Cabinet With Rectifier System UPS and Monitoring system
Product Description:
The cabinet layout of this communication power supply is designed to have a one-compartment layout, which means that all the electrical components and embedded power supply from Daxin are housed in a single enclosure, making it compact and easy to install. Moreover, this communication power supply is capable of providing a stable and reliable DC voltage output of 48V and a current output of 50A, making it suitable for a wide range of communication equipment.
If you are looking for a desktop power supply unit that is reliable and efficient, the One Compartment Cabinet Layout 48V 50A Power Supply is a great option. This communication power supply is designed to operate in harsh outdoor conditions and is perfect for use in communication applications such as radio towers, cell sites, and other outdoor communication equipment that require stable and reliable DC voltage output.
The Daxin embedded power supply is a key feature of this communication power supply. It has been designed and tested to provide a stable and reliable DC voltage output, ensuring that your communication equipment operates smoothly. The DC DC power supply is also efficient and consumes less power, reducing your energy costs.
In summary, the One Compartment Cabinet Layout 48V 50A Power Supply for Humidity Range of 95% Pole Mount/Wall Mount Outdoor Dis is a reliable and efficient communication power supply that is designed to operate in harsh outdoor conditions. Its one-compartment layout, outdoor powder coating surface, and Daxin embedded power supply make it a great option for those in need of a sturdy and reliable communication power supply. Whether you're looking for a desktop power supply unit or a DC DC power supply, this communication power supply is sure to meet your needs.
Features:
Thermal Management: Outdoor cabinets often include thermal management systems to regulate the temperature inside the cabinet and prevent overheating. This can include features like fans, air conditioning units, heat exchangers, or passive cooling methods.
Security Measures: Outdoor cabinets are equipped with security features to protect the telecom equipment from theft or unauthorized access. This can include lockable doors, tamper-proof locks, and alarm systems.
Cable Management: Outdoor cabinets have provisions for proper cable management to organize and protect the cables connected to the telecom equipment. This can include cable trays, cable entry points, and cable management accessories.
Power Distribution: Outdoor cabinets may have built-in power distribution units (PDUs) to distribute power to the telecom equipment. This ensures proper power supply and helps manage power consumption.
Environmental Monitoring Unit:An Environmental Monitoring Unit (EMU) is a feature commonly found in outdoor telecom cabinets. It is designed to monitor and report environmental conditions inside the cabinet to ensure the optimal functioning of the telecom equipment.
Technical Parameters:
| No. |
Item |
Quantity |
Unit |
Specs |
| 1. |
Outdoor Telecom Cabinet |
1 |
Set |
(1) External Dimension: W*D*H 900*900*2150mm
(2) One compartment: 19” rack, 40U
(3)With one front door, and three point lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel, single wall with insulation
|
| 2. |
Air Conditioner |
1 |
Set |
Cooling capacity: 2500W, Power Supply: AC220V, 50Hz |
| 3. |
Auxiliary Direct Ventilation Fans |
2 |
PC |
AC220V,install on the top of the cabinet |
| 4. |
DC Power system |
1 |
SET |
Model: ET48300-5U 8kW(6*3000W rectifier module) With Controller |
| 5. |
Environment Monitoring Unit |
1 |
Set |
1U, AC220V, support SNMP communication |
| 6. |
Water Sensor |
1 |
PC |
|
| 7. |
Smoke Sensor |
1 |
PC |
|
| 8. |
Temperature and Humidity Sensor |
1 |
PC |
|
| 9. |
Door Sensor |
1 |
PC |
|
| 10. |
LED Lamp |
1 |
PC |
AC220V |
| 11. |
Package |
1 |
Set |
Wooden Case |
DC Power System Parameter
| Category |
DX48300-5U |
| System |
Dimension(mm) |
482.0(W)*350.0(D)*5U(H) |
| |
Weight |
≤15kg(without rectifier module) |
| |
Cooling mode |
Natural cooling |
| |
Installation mode |
Installed on 19-inch rack or inside the cabinet |
| |
IP Grade |
IP20 |
| AC Distribution |
Input Voltage |
380Vac,three phase |
| |
Input capacity |
1*63A/4P |
| |
Input frequency |
45~65Hz, rated 50/60Hz |
| |
AC SPD |
20kA/40kA, 8/20μs |
| DC Distribution |
Output voltage |
-43~-58VDC,rated value:-53.5VDC |
| |
Maximum capacity |
18kW(6*3000W rectifier module) |
| |
Battery connection |
2*125A/1P |
| |
Load breakers |
LLVD:63A/1P×3+32A/1P×3+16A/1P×2 BLVD:32A/1P×2+16A/1P×3 |
| |
DC SPD |
10kA, 8/20μs |
| Rectifier module |
Efficiency |
≥96%@340Vdc/ 53.5VDC rated load |
| |
Rated power |
3000W(85～300Vdc ) |
| |
Working temperature |
-40℃~+75℃(fully output below 50℃) |
| |
Dimension |
105.5mm(W)×286mm(D)×41.5mm(1U/H) |
| |
Cooling mode |
Forced cooling with fan |
| Controller |
Signal input |
4 AI(3 Battery temp., 1 ambient temp) ,6 DI(SPD, 6 common DI) |
| |
Alarm output |
4 dry contact |
| |
Communication port |
LAN/RS232/RS485 interface,LAN-SNMP,TCP/IP |
| |
Display mode |
LCD |
| Environment |
Operating temperature |
-40℃~+65℃ |
| |
Storage temperature |
-40℃~+70℃ |
| |
Operating humidity |
0%~95%(non-condensing) |
| |
Altitude |
0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) |
