Home /Products/Outdoor Power Cabinet/40U Outdoor 19 Rack Cabinet Weatherproof Outdoor Enclosure IP55 With Cooling And Power System

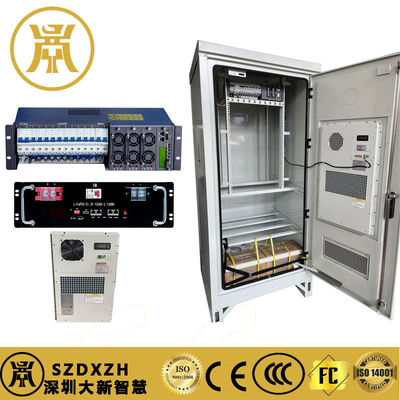

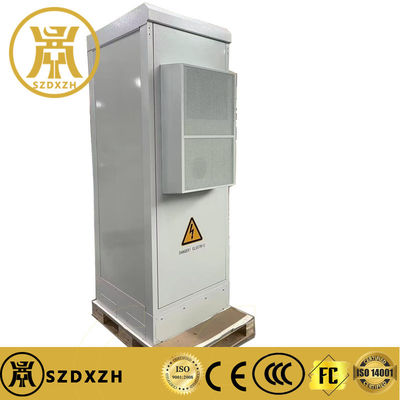

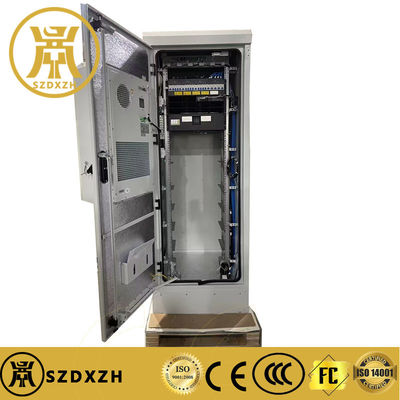

40U Outdoor 19 Rack Cabinet Weatherproof Outdoor Enclosure IP55 With Cooling And Power System

1 set
MOQ
Negotiation
Price
40U Outdoor 19 Rack Cabinet Weatherproof Outdoor Enclosure IP55 With Cooling And Power System
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Outdoor 19 Rack Cabinet
Internal Size: W×D×H 900×900×2150mm
Cabinet Lock: Anti-theft Three Point Lock
Protection Level: IP55
User Space: 40U
Battery Shelf No: One Battery Shelf
Illumination: DC48V LED Lamp
Cooling: Air Conditioner And Fans
Highlight:

40U Outdoor 19 Rack Cabinet

,

Outdoor 19 Rack Cabinet Weatherproof

,

Weatherproof Outdoor Enclosure IP55
Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: Daxin
Certification: ISO9001,CE,3C,FCC,TLC,IP55
Model Number: ODC-210909C2T
Payment & Shipping Terms
Packaging Details: Woodcase
Delivery Time: 20-40 days
Payment Terms: T/TD/A,Western Union,Paypal,etc
Supply Ability: 3000pcs/month
Product Description

Weatherproof Outdoor Power Cabinet 19inch Rack Integrated With Cooling And Power System



Product Description:



Our Outdoor Power Cabinet features DC48V LED lamps for reliable illumination, ideal for outdoor use. With IP55 protection, it resists dust and water, while the 3.0mm jacket ensures durability. It supports batteries up to 550×125×320mm and includes a secure anti-theft three-point lock. Perfect for outdoor power needs, it guarantees safety, weather resistance, and theft protection in a compact, sturdy design.



Features:

  • OEM/ODM acceptable
  • Battery Shelf No: One Battery Shelf
  • Cabinet Cooling: Air condtioner And Fans
  • Cabinet Lock: Anti-theft Three Point Lock
  • Layout: 2 Compartments
  • Internal Size: 40U
  • Weather Resistant



Technical Parameters:



Name/Description Specification/Model Parameter
Outdoor integrated
power cabinet		 900*900*2150 A.Cabinet dimensions:W×DxH900*900*2150mm;
     Internal dimensions:W×DxH800*800*1800mm
B.Cabinet type:1 unit,1 compartment,front door,floor mounted
C.Cabinet material:1.5mm galvanized sheet;
D.Thermal insulation performance:thermal conductivity<0.472W/(m2.k);
E.Upper equipment rack:19 inch rack,22U,3 pairs of support bars,1 pallet;The lower two battery racks can accommodate up to 2 sets of 48200AH lead-acid batteries;
F.Cabinet base:100mm high,2.0mm thick;
G.Entry method:Bottom in and bottom out with a diameter of 50*4;
H.Anti theft design:embedded doors,embedded links,point type anti-theft locks;
I.Protection evel:IP65;
J.Color:RAL7035,professional outdoor powder coating;
K.Induding grounding copper bar,LED light,door magnetic switch
Embedded switch
power supply 200A		 ET-PS48200Z-6U 19 inches,embedded plug-in frame 6U high;AC input 380V,DC output 48V;
Equipped wth 350A rectifier modules and 1 monitoring and management module;
Capable of battery charging management;
Distribution section:AC input:air switch DZ47-63/4 C6363A/4P*1;Three phase ACC-
level lightning arrester 20-40KA;Communication output:Air switch DZ47-63/2 C32
32A/2P*1;Ground wire terminal*1;DC C-evel lightning arrester 20-40KA 1P*1;DC
output:One power outage:DZ47-63/1 C6363A/1P*3,DZ47-63/1 C3232A/1P*2;
Secondary power offDZ47-63/1 C6363A/1P*2,DZ47-63/1 C1616A/1P*2;Battery
empty  switch:DZ47-125/1125A/1P*2.
Distribution unit
(optional/customizable)		 3U 19 inch 3U high embedded plug-in frame,AC380V input,63A/4P×2(AC input,oil
engine input+mechanical interlock plate),three-phase B-cass lightning arrester ×1,
63A/3P×1,32A/1P×2,16A/1P×2,10A/1P×1,6A/1P×1,three hole
maintenance socket ×1,ground row×1,zero row×1.
Communication air
conditioning		 DXAC1500W220V AC 220V, 50/60Hz, 1500W



Applications:



The ODC-210909C2T Outdoor Power Cabinet is ideal for telecom (cell towers, transmitters), transportation (traffic lights, streetlights), renewable energy (solar/wind storage), and outdoor events (stages, lighting). Its IP55-rated, weatherproof design protects equipment in harsh conditions.



More detail:



Outdoor power cabinet, outdoor power enclosure, outdoor telecom enclosure

Tag:

IP65 Outdoor Cabinet

Backup Battery Cabinet

IP55 Rated Enclosure
