OEM 48V 100AH Lithium Iron Battery Rack Embedded Energy Storage Battery

OEM 48V 100AH Lithium Iron Battery Rack Embedded Energy Storage Battery

Lithium Iron Battery Rack Technique Parameter
1 【Rating Voltage】 51.2V
2【Capacity】 102Ah【Minimum Capacity】(a) 100Ah
3 【Energy】 5.22KWh
4 Shipping voltage ≥48.0V
5【Charge Voltage】 57.6V
6 【End of Discharge Voltage】 40.0V (Battery standard discharge)
7 【Charging Mode】 Constant current/constant voltage mode【C.C/C.V.】(Voltage conversion)
8 【ChargingCurrent】【Standard】 20A (≈0.2C)【Fast】 50A (≈0.5C)
9 【Charging Time】【Standard】 6.0Hours【Fast】 2.5Hours

10【discharge current】【Standard】20A (≈0.2C)【Max】/ 100A (≈1.0C) /120A (≈1.2C)3sec
11 【Operating Temperature】【Charging】 0~50℃【Discharging】 -20~60℃
12 【Recommend Storage Temperature】(b) 25±5℃
13 【Impedance】 ≤100.0mΩ
14 【Weight】≈31.0 kg(Without box) ≈48.0 kg(With box)
15 【Cycle Life】≥5000 cycles @70% DOD @70% EOL@25℃ @0.2C
16 Combination mode (series and parallel)16S1P

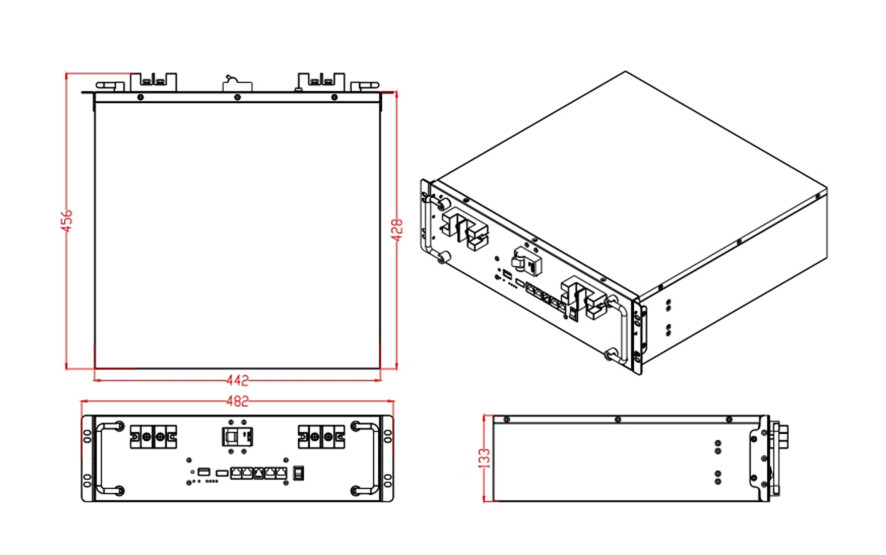

17 Overall dimensions (length*width*height) 428*442* 133mm

Remark
a, [Ordinary temperature 0.2C discharge after full charge]

b, [Storage capacity should be 40%~50% full charge capacity ]
