All In On BESS Energy Storage System 50kva 100kwh ESS Energy Storage System
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: BESS Energy Storage System

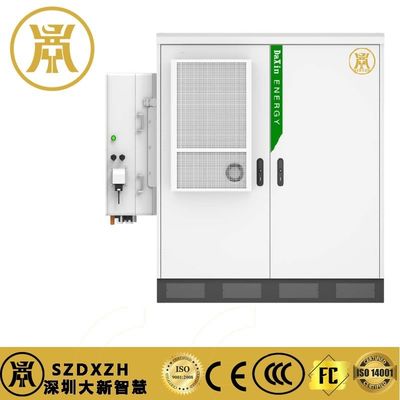

System Configuration: Outdoor Cabinet+Inverter+Battery
Cabinet Lock: Anti-theft Three Point Lock
Protection Level: IP55
Power Output: Varies Depending On Customer Needs
Cabinet Material: Galvanized Steel
Highlight:

All In On Energy Storage System

,

BESS Energy Storage System 50kva

,

100kwh ESS Energy Storage System

Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: Daxin
Certification: ISO9001,CE,3C,FCC,TLC,IP55
Model Number: DX-BESS-50K100
Payment & Shipping Terms
Packaging Details: Woodcase
Delivery Time: 20-40 days
Payment Terms: T/TD/A,Western Union,Paypal,etc
Supply Ability: 3000pcs/month
Product Description

All In On Bess / Ess Solar Storagy System 50kva 100kwh Solar Pv Batteries Solution



Industrial And Commercial Energy Storage System Introduction



The DX-BESS-50K100 is an innovative and advanced solar PV batteries solution crafted by DX ENERGY, a leading manufacturer in the field. It harnesses high-voltage lithium iron phosphate (LiFePO4) battery technology to offer a reliable, efficient, and safe renewable energy storage and backup power solution. This modular system is designed for large-scale applications, ensuring seamless operation in diverse scenarios.


Industrial And Commercial Energy Storage System Parameters:



SystemSpecification
Nominal Output Power/UPS Power(W) 50000
AC Output Frequency and Voltage 50/60Hz;3LN/PE220/380,230/400Vac
Grid Type Threephase
Energy Configuration (kWh) 102.4
Dimension (WxDxH,mm) 1400x1100x1650(nocontaininverter)
Weight Appr.(kg) 1350(nocontaininverter)
AC Output Rated Current(A) 75.8
Battery Operating Voltage(V) 400~800
Battery Chemistry LiFePO4
IP Rating of Enclosure IP55
System Certification UN38.3,IEC62619,CE,CEI0-21,VDE-AR-N4105,IEC62109

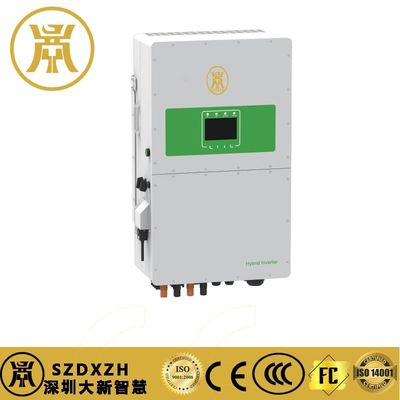

Inverter Technical Parameters:



Max Parallel connection sets 10
Max.PV Input Power (W) 65000
Max.PV Input Current(A) 36+36+36+36
Rated PV Input Voltage(Vdc) 600
Start Up DC Voltage(Vdc) 180
MPPT Voltage Range (Vdc) 150-850
Max.PV Short-circuit Current(A) 55+55+55+55
Number of MPPT 4
Peak Power(off grid) 1.5 time of rated power,10s
Power Factor 0.8 leading to 0.8 lagging
THD <3%
DC injection current(Ma) <0.5In
Display LCD
Operating Temperature Range() -40-60(>45 derating)
Relative Humidity

Dimension (WxDxH,mm)

Inverter Communication
15%~85%(No Condensing)

527x294x894

CAN,RS485,WIFL,ETH
Safety EMC/Standard IEC/EN 62109-1,IEC/EN62109-2,IEC/EN
61000-6-1,IEC/EN 61000-6-2,IEC/EN
61000-6-3,IEC/EN 61000-6-4
Grid Regulation VDE4105,IEC61727/62116,VDE0126
AS4777.2,CEI021,EN50549-1,G98,G99,
C10-11,UNE217002,NBR16149/NBR16150
Max.Efficiency 97.6%
Max.charging/discharging efficiency 91%



Industrial And Commercial Energy Storage System Advantages

  • Intelligent Temperature Control: A built-in air conditioner ensures the battery temperature remains below 40°C, optimizing performance and battery lifespan.
  • Reliable: The Positive Balance Intelligent BMS provides comprehensive protection, effectively extending the cycle life of battery packs.
  • Flexible: With the integration of EMS and BMS technologies, AC/DC power supply redundancy design, and support for the black start function, it offers great flexibility in operation.
  • Safer: Using Prismatic Lithium Iron Phosphate (LFP) Battery, the battery pack and system adopt an aerosol fire extinguishing solution, enhancing safety.



Industrial And Commercial Energy Storage System Uses



  • Renewable Energy Storage: Ideal for storing energy generated from solar PV systems, enabling efficient utilization of renewable energy.
  • Backup Power: Serves as a reliable backup power source during power outages, ensuring continuous operation of critical loads.
  • Grid Support: Can be used in grid-connected applications to support grid stability and power quality improvement.

All In On BESS Energy Storage System 50kva 100kwh ESS Energy Storage System 0



Industrial And Commercial Energy Storage System Features

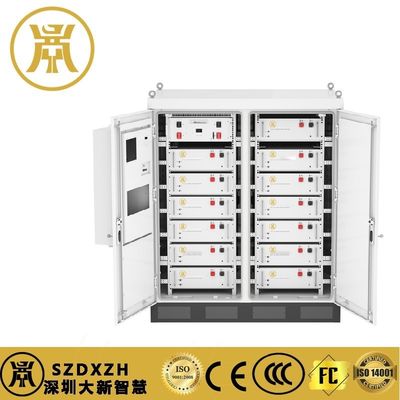

  • Modular Design: Composed of 10 battery modules (10.24KWH each) connected in series, providing a total usable capacity of 100kWh.
  • Eco-friendly: With cobalt-free, non-toxic LiFePO4 chemistry and an IP55 enclosure, it allows for versatile indoor or outdoor installation, being environmentally friendly.
  • Integrated Management Systems: The integrated energy management system supports functions like black start and AC/DC coupling with solar PV, while the intelligent battery management system monitors and protects each module.
