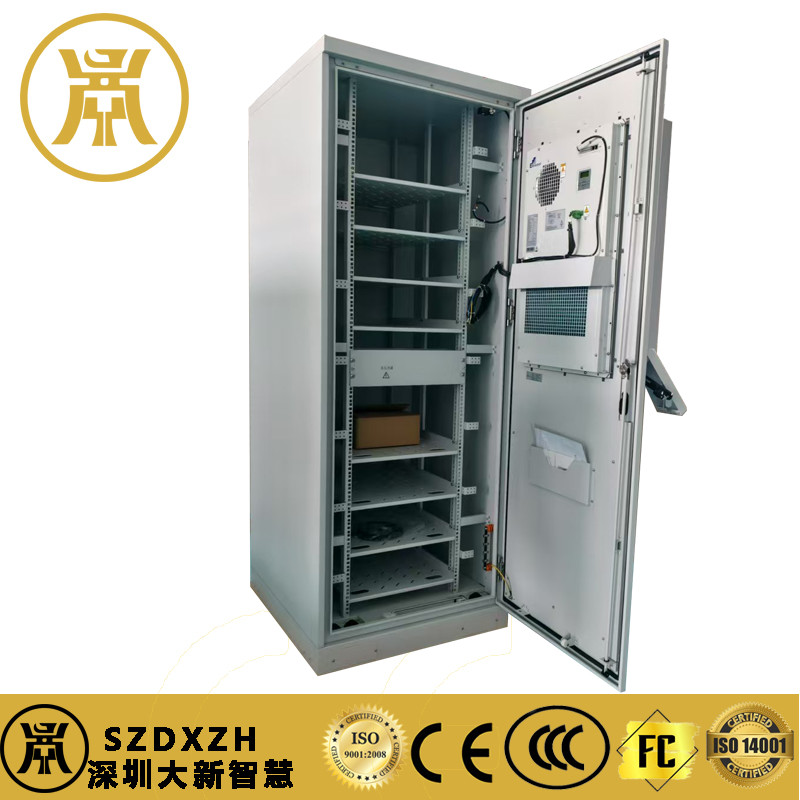

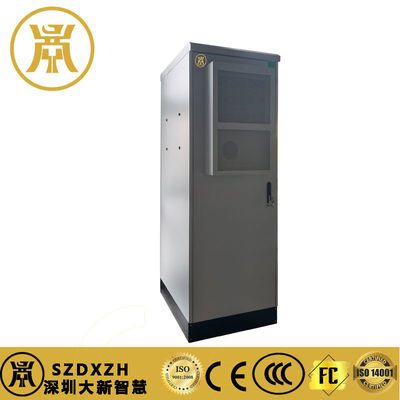

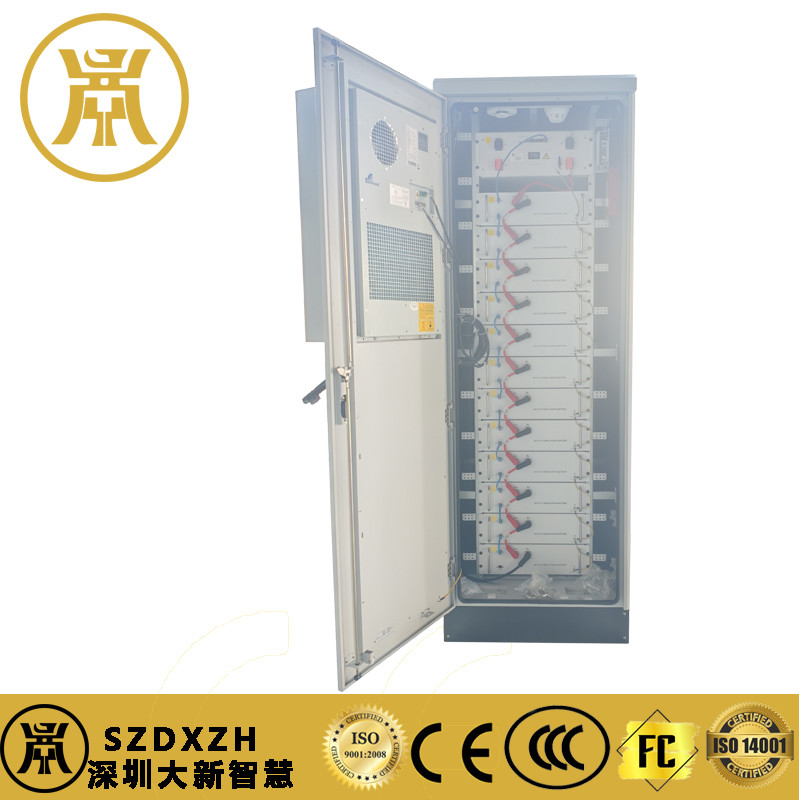

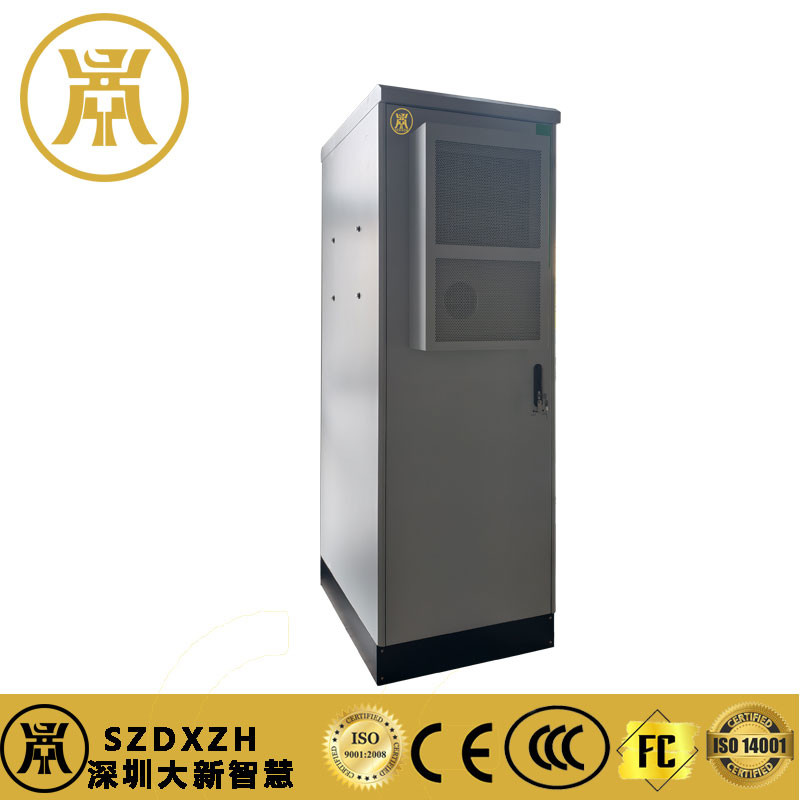

Double Walls Outdoor Battery Storage Cabinet IP55 Outdoor Rack Enclosure

1 set
MOQ
Negotiation
Price
Double Walls Outdoor Battery Storage Cabinet IP55 Outdoor Rack Enclosure
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Outdoor Battery Storage Cabinet
Layout: 1 Compartments
Material: Galvanized Steel/ Stainless Steel Double Walls
Internal Structure: 19inch Rack/ Battery Rack/ Tray
Cooling System: Air Conditioner And Fans
Highlight:

Double Walls Outdoor Battery Storage Cabinet

,

Outdoor Battery Storage Cabinet IP55

,

IP55 Outdoor Rack Enclosure

Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: Daxin
Certification: ISO9001,CE,3C,FCC,TLC,IP55
Model Number: ODC-210909C2T-BC
Payment & Shipping Terms
Packaging Details: Woodcase
Delivery Time: 20-40 days
Payment Terms: T/TD/A,Western Union,Paypal,etc
Supply Ability: 3000pcs/month
Product Description

Double Walls Battery Outdoor Energy Storage System Enclosure With 1500w Air Conditioner


Product introduction and features:



Unbreakable Resilience, Engineered for Extreme Conditions


Our Outdoor Battery Storage Cabinets redefine reliability with military-grade galvanized steel construction (1.2mm outer/0.6mm inner panels) and 45mm PU thermal insulation to withstand corrosive, high-humidity, and extreme temperature environments (-30°C to +55°C). Designed for telecom, renewable energy, and industrial sectors, these cabinets deliver zero-downtime power security with unmatched adaptability.



Core Advantages:



  1. Smart Climate Control
  • Dual-mode cooling: 400W semiconductor AC + 4x12038 high-speed fans ensure ±1°C temperature precision for lithium-ion/lead-acid batteries.
  • IP55-rated enclosure protects against dust, rain, and vandalism.
  1. Intelligent Power Management
  • 4-way smart PDU with load balancing and surge protection.
  • IoT-ready BMS enables real-time monitoring of voltage, SOC, and cell health via RS485/Modbus/Wi-Fi.
  1. Future-Proof Modularity
  • Stackable design scales from 5kWh to 500kWh configurations.
  • Dediated compartments for batteries, inverters, and auxiliary gear.



Applications:



  • 5G/Telecom: Ensure base station uptime with UL94-V0 fire-rated safety.
  • Solar/Wind Farms: Optimize renewable storage with NEMA 4X-compliant durability.
  • Smart Grids: Deploy at substations for grid-edge resilience.
  • EV Charging Hubs: Safeguard backup power systems in remote locations.



Why Partner With Us?

  • 24/7 predictive maintenance: AI-driven alerts reduce failure risks by 40%.
  • Turnkey customization: Modify dimensions, cooling, or PDU layouts in 3–5 days.
  • TCO reduction: 98% energy-efficient thermal systems cut OPEX by 30%.



Technical Parameters:



Item Type Technical Parameter
Structure Dimension External Dimension: W*D*H 900*900*2100mm
Layout 1 compartment
Equipment Installation Method 19" rack, 40U
Door With one front door, and three point lock for outdoor cabinet (support padlock)
Material Galvanized steel, double walls with insulation
Heat Insulation 20mm PEF
Ingress Protection IP55
Temperature Control Cooling Air conditioner and fan
Lighting LED lamp LED lamp
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)





Upgrade to industrial-grade power resilience—request a site assessment today.


Outdoor energy storage/IP55 outdoor cabinet/ Weatherproof Power Cabinet
