Energy Storage Solar Power System Integrated IP55 Outdoor Cabinet Lithium ESS

1 set
MOQ
Negotiation
Price
Energy Storage Solar Power System Integrated IP55 Outdoor Cabinet Lithium ESS
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Solar Power System
Protection Level: IP55
Battery Working Current: 100A
Communication Port: CAN/TCP/IP
Battery Cycle Life: 6500
Battery Peak Charge/Discharge Current: 200A
Highlight:

Energy Storage Solar Power System

,

Integrated IP55 Outdoor Cabinet

,

Solar Powered IP55 Outdoor Cabinet
Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: Daxin
Certification: ISO9001,CE,3C,FCC,TLC,IP55
Model Number: DX-CESS-20KW/50KWH
Payment & Shipping Terms
Packaging Details: Woodcase
Delivery Time: 20-40 days
Payment Terms: T/TD/A,Western Union,Paypal,etc
Supply Ability: 3000pcs/month
Product Description

Solar-Powered IP55 Lithium ESS For Telecom Station Backup Integrated With Cooling System



Product Description:



Daxin Energy's industrial and commercial energy storage system follows an integrated design concept. It integrates batteries, Battery Management System (BMS), Energy Management System (EMS), modular Power Conversion System (PCS), and a fire protection system within the cabinet. The modular design enables flexible expansion, making it adaptable to a variety of application scenarios.

This system is equipped with functions such as grid voltage regulation, three - phase unbalance control, and harmonic control. It can enhance power quality, achieve load tracking, provide backup power, and perform peak shaving. It helps enterprises reduce energy costs, increase the utilization of green energy, and ensure the safe and stable operation of the system.



Features:



● Fast power response, supporting virtual power plant, grid-connected, off-grid and other modes
● Local data collection, intelligent monitoring, remote operation and maintenance
● Multi security protection design, multi-information fusion
● Local/remote upgrade, supporting program upgrade, compared with traditional point-to-point upgrade efficiency increased by more than 90%





Technical Parameters:



Model No R80K R100K R120K R130K
Nominal Capacity 81.92kWh 102.4kWh 122.88kWh 133.12kWh
Cell Matching 128S1P 160S1P 192S1P 208S1P
Nominal Voltage 409.6V 512V 614.4V 665.6V
Working Voltage Range 176 ~ 233.6V 264 ~ 350V 440 ~ 584V 598 ~ 728V
Weight 969.6kgs / 2138 lbs 1172kgs / 2584 lbs 1294.4kgs / 2854 lbs 1456.8kgs / 3212 lbs
Dimension (WDH) 1700*1200*1700mm / 66.9*47.2*66.9 in
Battery Type LiFePO4 Battery
Nominal Working Current 100A
Communication Port CAN/TCP/IP
Working Temperature Range Charge:0 - 55°C/Discharge: - 20 - 55°C
Waterproof IP20
Installation Method Floor - standing
Cycle Life 6500
Peak Charge/Discharge Current (@25°C, 5S) 200A
Discharge Rate of Module ≤3.5%/month/@25°C



Applications:



Telecommunications, Transportation, Renewable Energy, Outdoor Events

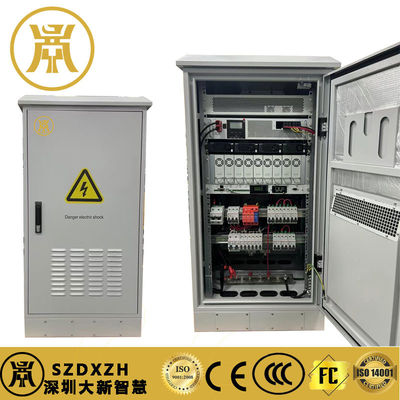

Energy Storage Solar Power System Integrated IP55 Outdoor Cabinet Lithium ESS 0

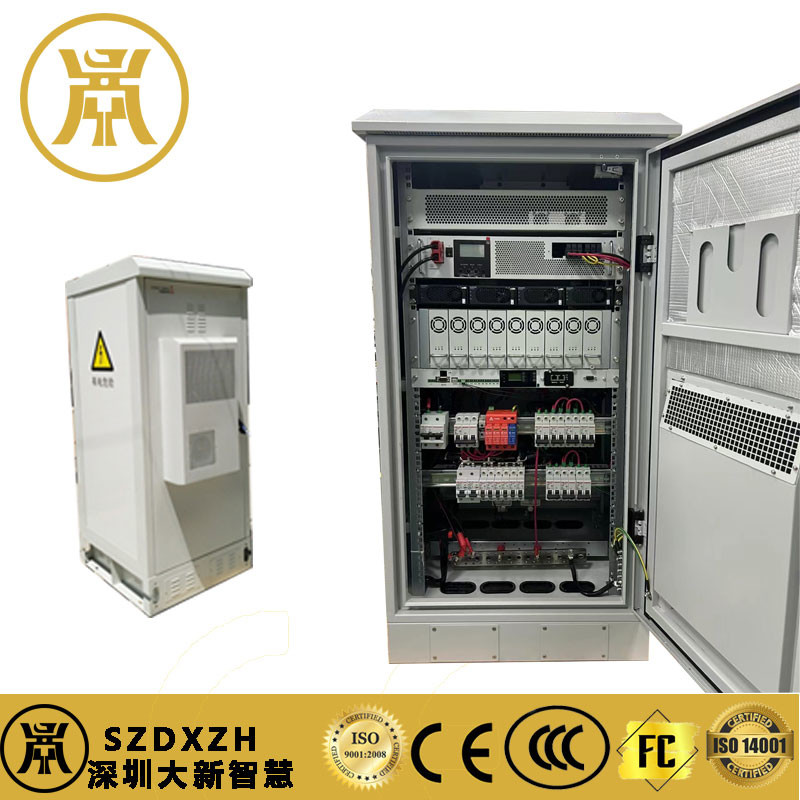

Energy Storage Solar Power System Integrated IP55 Outdoor Cabinet Lithium ESS 1
