Name: High Frequency 3-Phase UPS System for Seamless Power Protection & Voltage Stabilization
Brand: Shenzhen Daxin Intelligent Equipment Technology Co., Ltd
SKU: 3H15KL
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Net Weight: 40kg

Capacity: 15K VA/12KW

Input Voltage: 190-520VAC (three-phase)

Output Voltage: 208/220/230/240VAC (±1%) (single-phase)

Transfer Time: 0 Ms

Highlight:

double conversion high frequency ups

double conversion ups uninterruptible power supply

Basic Infomation

Place of Origin: Shenzhen,China

Brand Name: Daxin

Certification: ISO9001,CE,3C,FCC,TLC,IP55

Model Number: 3H15KL

Payment & Shipping Terms

Packaging Details: Woodcase

Delivery Time: 20-40 days

Payment Terms: T/TD/A,Western Union,Paypal,etc

Supply Ability: 3000pcs/month

Gallery

High Frequency 3-Phase UPS System for Seamless Power Protection & Voltage Stabilization

Product Description

High Frequency 3-Phase UPS System for Seamless Power Protection & Voltage Stabilization

Advanced True Online Double Conversion Technology for Seamless Power Protection,

Zero Downtime & Voltage Stabilization

High-Reliability Design

✔ True Online Double Conversion technology ensures seamless power transfer.
✔ Generator-Compatible (requires generator capacity ≥ 2x UPS rating).
✔ Optional Output Isolation Transformer (factory-installed).
✔ Standard EPO (Emergency Power Off) for safe shutdown.
✔ Advanced MCU + DSP Dual-Chip Control for precision management.
✔ Parallel Redundancy Support (up to 3 units, parallel-capable models only).
✔ Adjustable Battery Configuration (16–20 sections, field-configurable).
✔ Programmable Charging Current (1–4A per charging module, default 4A).
✔ Two Model Variants Available (PF0.8 / PF0.9).
✔ Auto-Restart After Power Failure (disabled by default).
✔ Auto-Recovery Post-Battery Depletion upon AC restoration.

Comprehensive Protection Features

✔ Multi-Layer Safeguards: Output overload/short-circuit protection, inverter overtemperature shutdown, battery undervoltage warning, and overcharge prevention for maximum system stability.
✔ Optional Manual Bypass Switch enables maintenance without load interruption (seamless transition to utility power).

Intuitive Interface & Monitoring

✔ LCD Display: Real-time UPS status, operational parameters, and event logging.
✔ Remote Management: RS232/RS485, SNMP compatibility, and monitoring software for detailed UPS control via PC.

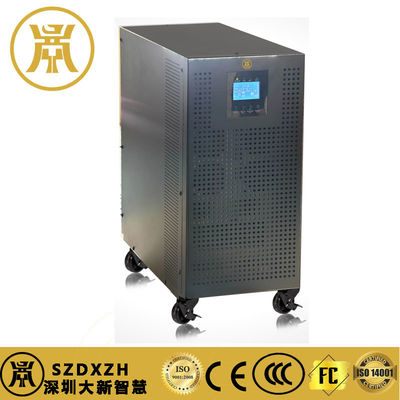

High Frequency 3-Phase UPS System for Seamless Power Protection & Voltage Stabilization 0

Robust Environmental Adaptability

✔ Fully Sealed PCB Compartment with Triple-Proof Coating (dust/humidity/corrosion-resistant), ideal for harsh environments (e.g., tunnels, outdoor plazas).

Technical Parameters

Model		3H1 5 KL
Capacity		15000VA / 12000W
Input
Voltage range		190-520VAC (3 phase) 50% load
		305-478VAC (3 phase) 100% load
Frequency range		46Hz ~ 54 Hz @ 50Hz system
		56Hz ~ 64 Hz @ 60Hz system
Phase		Three-phase grounding
Power Factor		≧ 0.99 at 100% load
Output
Phase		Single phase (live wire + neutral wire + ground wire)
Output voltage		208/220/230/240VAC
AC Voltage Range		± 1%
Frequency range (synchronization range)		46Hz ~ 54 Hz @ 50Hz system
		56Hz ~ 64 Hz @ 60Hz system
Frequency range (battery mode)		50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Overload	Mains mode	100%~110%: 10 minutes; 110%~130%: 1 minute; >130%: 1 second
		Overload, switch to bypass mode
	Battery Mode	100%~110%: 30 seconds; 110%~130%: 10 seconds; >130%: 1 second
		Overload, switch to bypass mode
Current peak ratio		3:1 max
Harmonic distortion		≦ 2 % @ 100% linear load; ≦ 5 % @ 100% non-linear load
Switching time	Online ← →Battery	0 ms
	Inverter← → Bypass	0 ms
	Inverter ← → ECO	<10 ms
Output power factor		0.8
Parallel capacity		Supports up to 3 units in parallel (not supported by the commonly sold models)
Waveform		Pure sine wave
Inverter mode		IGBT
Control method		MCU+DSP
Efficiency
AC Mode		> 89%
Battery Mode		> 8 8 %
Long-lasting machine (number of battery cells is factory adjustable)	model	Depends on battery configuration
	number	16 - 20
	Charging current (maximum)	8.0A ± 10%
	Charging voltage	273 VDC ± 1% (based on 20 batteries)
Display instructions
LCD	Visually display load size, battery capacity, AC mode, battery mode, bypass mode, fault indication, etc. through images
	The output voltage, frequency, bypass enable, ECO function, charging current, discharge time, etc. can be adjusted through the screen display menu
Appearance
Long extension machine	Dimensions, depth x width x height (mm)	592X250X576
	Net weight(kgs)	40
Environmental conditions
Operating temperature		0 ~ 40°C (Battery life will be shortened in environments > 25°C)
Operating humidity		<95 % without condensation
Operating altitude		<1000m
noise		Less than 60dB @ 1 Meter
Manage
Intelligent RS-232 or USB		Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC
Optional SNMP		Supports power management via SNMP manager and web browser

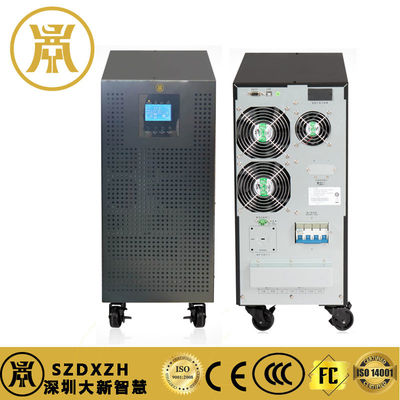

Back view:

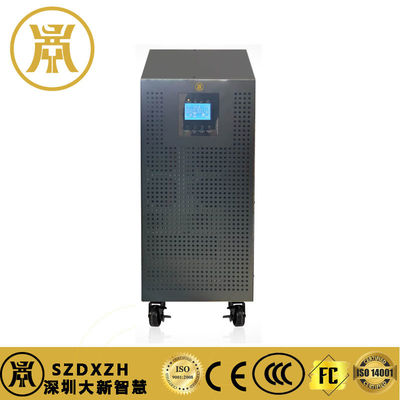

High Frequency 3-Phase UPS System for Seamless Power Protection & Voltage Stabilization 1

—UPS power solution service provider——

High Frequency 3-Phase UPS System for Seamless Power Protection & Voltage Stabilization 2
