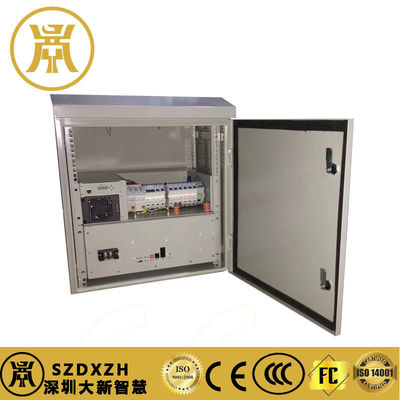

The dimensions of the WPS30000-150/150 wall mounted power supply system plug-in frame (height * width * depth) are 700mm * 580mm * 350mm.

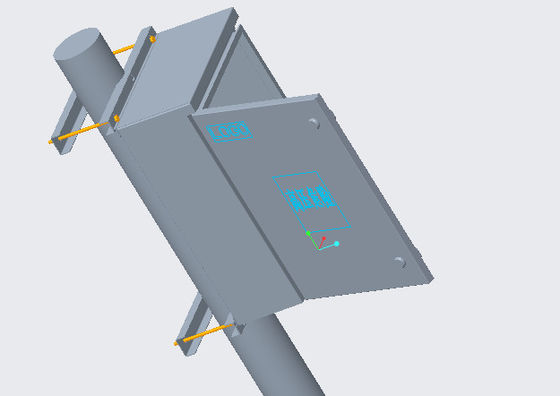

It consists of an AC distribution unit, a monitoring unit, a rectifier module unit, and a DC distribution unit, and can be installed in floor, wall, pole, and other ways. Left and right air ducts, module with built-in fan for forced heat dissipation, IP55, built-in temperature control system. Provide installation space for one set of 50AH ferroelectric batteries or four 38AH lead-acid batteries.
DX-P-150A-50AH wall mounted is used in communication systems with a maximum total capacity of 150A, suitable for wall mounted, floor mounted, pole mounted and other installation methods. It integrates communication power supply, AC/DC distribution, temperature control, monitoring, lightning protection and grounding system functions, and has complete battery management, such as battery low voltage protection function and load shedding function. It can achieve temperature compensation, automatic voltage regulation, current limiting, battery capacity calculation, online battery testing, sleep energy-saving and other functions. Network design of power system, providing multiple communication interfaces such as RS232/RS485 and dry contacts, flexible networking, remote monitoring, and unmanned operation. At the same time, it has a complete lightning protection design for both AC and DC sides, as well as comprehensive fault protection and fault alarm functions. Operate and maintain the front of the power system. The power system is easy to operate, install, and maintain, and is suitable for situations where the power grid fluctuates widely, such as base stations, small and medium-sized exchanges, satellite communications, and data communications
The system input is sent to the rectifier module input through a 63A/2P circuit breaker. Parallel AC C-level lightning protection is used for lightning protection at the input end.
The rectifier module operates in parallel, and its DC output is connected through a busbar to supply two backup battery packs and DC loads. DC loads are controlled by fuses or air switches, providing users with on/off control for each load and protection against overload and short circuits.
Under normal system conditions, various parameters of the rectifier module and distribution unit are controlled by the monitoring module and operate according to their predetermined parameters or user commands. If the mains power fails, the system will switch to battery power supply. As the battery discharges, the voltage at the battery end begins to drop. When the battery voltage drops to a power down voltage point, the monitoring module controls the power down contactor to operate and cut off the load; When the battery voltage drops to the battery protection voltage point, the monitoring module controls the action of the secondary power-off contactor, cutting off the connection between the power system and the battery, protecting the battery from excessive discharge. At this time, the power system will stop working. When the external mains power is restored and the rectifier module resumes output, the system will resume normal operation. The monitoring module can detect and control the working status of the entire power distribution system. User commands can be issued through the keyboard on the monitoring module panel, local backend PC, and remote central control room. The system's working status and parameters can be displayed on the monitoring module LCD screen, local backend PC, and remote central control room. The system can collect various environmental variables, including smoke, door magnets, water immersion, temperature, and humidity, by configuring appropriate sensors report.
Monitoring scheme: Monitor the RS485 ports in the north and south directions, dry contacts, and battery cell detection (optional) all led to the monitoring panel
Operation and maintenance method: Pre maintenance, rectifier module can be hot swappable.
