Home /Products/Outdoor Power Cabinet/IP55 Outdoor Power Cabinet 40U Custom Power Enclosures Anti Theft For BESS Applications

IP55 Outdoor Power Cabinet 40U Custom Power Enclosures Anti Theft For BESS Applications

1 set
MOQ
Negotiation
Price
IP55 Outdoor Power Cabinet 40U Custom Power Enclosures Anti Theft For BESS Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Outdoor Power Cabinet
Internal Size: W×D×H 900×900×2100mm
Cabinet Lock: Anti-theft Three Point Lock
Protection Level: IP55
Internal User Space: 40U
Battery Shelf No: One Battery Shelf
Illumination: DC48V LED Lamp
Highlight:

IP55 Outdoor Power Cabinet

,

Outdoor Power Cabinet 40U

,

Custom Power Enclosures Anti Theft
Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: Daxin
Certification: ISO9001,CE,3C,FCC,TLC,IP55
Model Number: ODC-2109090C2T
Payment & Shipping Terms
Packaging Details: Woodcase
Delivery Time: 20-40 days
Payment Terms: T/TD/A,Western Union,Paypal,etc
Supply Ability: 3000pcs/month
Product Description

IP55 Custom Outdoor Power Cabinet With Integrated Battery And Cooling For BESS Applications



Product introduction:



One cabinet per site is sufficient thanks to ultra-high energy density and efficiency. The custom cabinet supports multiple input (grid, Pv, genset) and output (12/24/48/57 V DC24/36/220 V AC) modes, integrating multiple energy sources into one. The custom outdoor cabinets are designed to protect equipment from external threats in all climates from the tropics to the arctic. In addition to traditional cooling methods, DX have hybrid cooling options revolutionize the cost structure of thermal management.



Features:



High Density-Compact power supply & lithium battery with superior power density.

Simplified Deployment-Smart peak shaving and automatic voltage boosting for seamless operation.

Intelligent Power Management-Dynamic load balancing and on-demand energy allocation for optimized backup

Smart PV Integration-Reduces energy costs and carbon footprint with efficient solar power utilization.





Technical Parameters:



Item Type Technical Parameter
Structure Dimension External Dimension: W*D*H 900*900*2100mm
Layout 1 compartment
Equipment Installation Method 19" rack, 40U
Door With one front door, and three point lock for outdoor cabinet (support padlock)
Material Galvanized steel, single wall with insulation
Heat Insulation 20mm PEF
Ingress Protection IP55
Temperature Control Cooling Air conditioner and fan
Lighting LED lamp LED lamp
Temperature Temperature Working Temperature: -40℃ ~ +55℃
Storage Temperature: -50℃ ~ + 70℃
Transport Temperature: -50℃ ~ +70℃
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×



Cabinet Accessories option List:





No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension W×D×H 900×900×2100mm

(2) One compartment: including 40U standard 19" rack

(3) With one front door and three point anti-theft lock for outdoor cabinet(support padlock)

(4) Material: galvanized steel; single wall with heat insulation

(5) IP level: IP55

(6) Cable entry on the bottom

(7) Including grounding copper bar
2 Air Conditioner 1 Set

Air conditioner

Cooling capacity: 1500W,

Power Supply: AC220V, 50Hz
3 Fan 1 Set Two AC220V fan and one temperature controller
4 Environment Monitoring System 1 Set

1× environment monitoring unit,19", 1U; AC220V, support RS485 and SNMP communication

1× smoke sensor,

1× water sensor,

1× temperature sensor,

1× door sensor.
5 AC and DC Power Distribution Unit 1 Set

Grade B Lightning Proof

AC Input: 63A/2P×1;

AC Output: 16A/1P×4;

DC Output: 16A/1P×4；

Height: 4U
6 LED Lamp Switch 1 PC Used for controlling LED lamp on/off
7 LED Lamp 1 PC AC220V, used for illumination in the cabinet
8 Package 1 Set Wooden Case



More pictures:

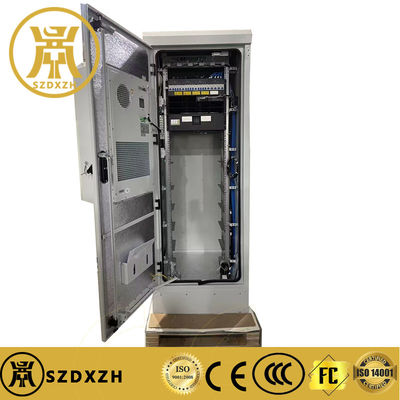

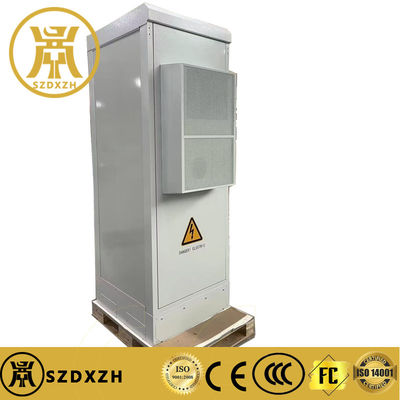

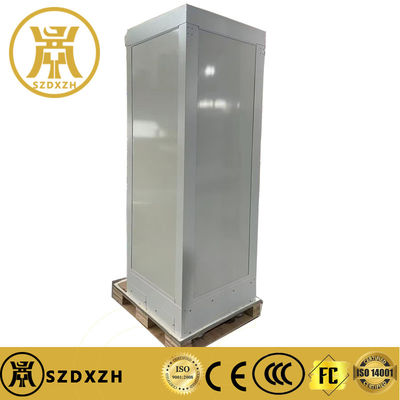

Outdoor power cabinet, outdoor telecom enclosure
